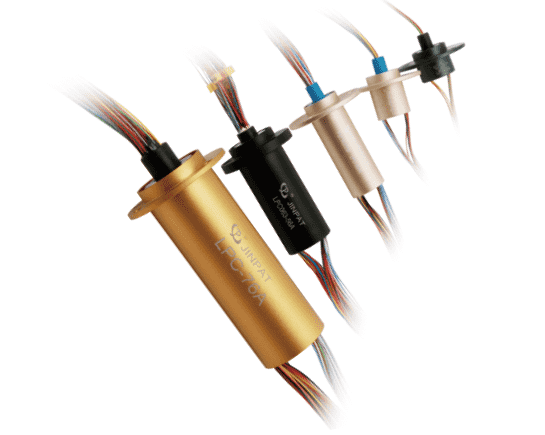

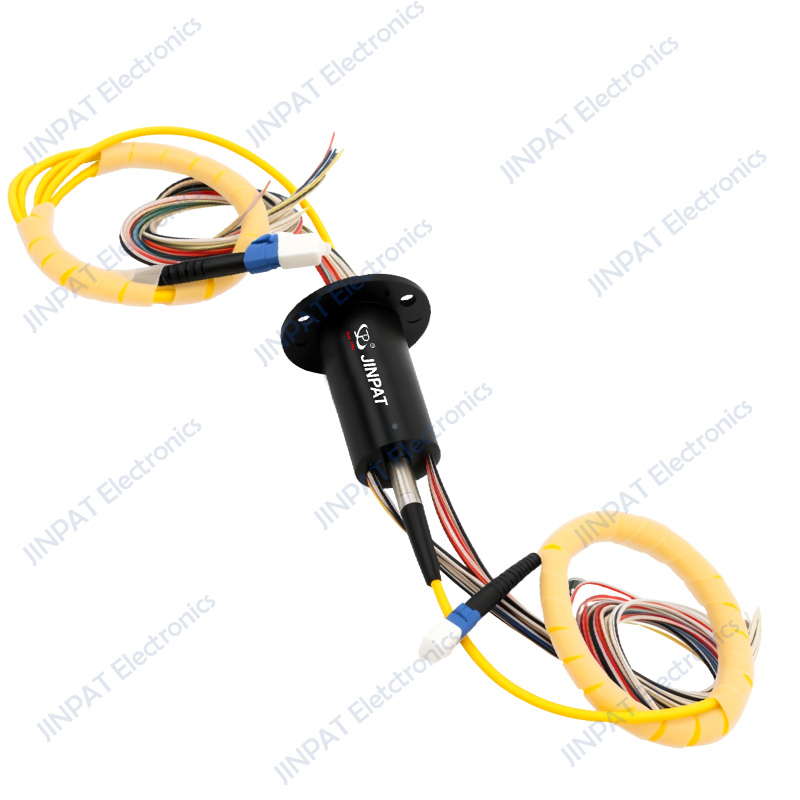

LPC Capsule Slip Rings
Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc
Features:
◎Military standard surface processing /Precise/Gold-to-gold contact/Low resistance/Long service life
Options:
◎Rotating speed/Life span/Protection grade/Number of circuits/Current capacity/Size/Housing material/Mass production
| LPC Capsule Slip Rings Series | ||||||||||||||
| Model | Number of Circuits | OD * Length （mm） | Voltage （AC/DC） | Current (A) | Rotor Outer Diameter (D1) | Flange Outer Diameter (D2) | Flange Mounting Hole Position (D3) | Flange Mounting Hole Inner Diameter (D4) | Via Diameter (D5) | Rotor Exposed Length (L1) | Flange Position (L2) | Flange Thickness (L3) | Details | Downloads |
| LPC-03P | 3 | Φ22*42.3 | 240V | 10A | Φ7.6 | Φ44.5 | Φ34.9 | Φ5.4 | Φ0 | 9.3 | 4.8 | 2.35 |
| / |
| LPC-06A | 6 | Φ22*19.2 | 240V | 2A | Φ7.8 | Φ44.5 | Φ34.9 | Φ5.2 | Φ0 | 9.2 | 5.1 | 2.4 |
| / |
| LPC-06B | 6 | Φ22*19.2 | 240V | 2A | Φ0 | Φ44.5 | Φ34.9 | Φ5.2 | Φ0 | 0 | 5.1 | 2.4 |
| / |
| LPC-08A | 8 | Φ22*21.4 | 240V | 2A | Φ7.8 | Φ44 | Φ34.9 | Φ5.5 | Φ0 | 9.3 | 5.1 | 2.4 |
| / |
| LPC-12A | 12 | Φ22*26.4 | 240V | 2A | Φ7.8 | Φ44.5 | Φ34.9 | Φ5.2 | Φ0 | 9.4 | 5.1 | 2.4 |
| / |
| LPC-12B | 12 | Φ22*26.4 | 240V | 2A | Φ0 | Φ44.5 | Φ34.9 | Φ5.2 | Φ0 | 0 | 5.1 | 2.4 |
| / |
| LPC-18A-01 | 18 | Φ22*32.9 | 240V | 2A | Φ8 | Φ44.5 | Φ34.9 | Φ5.4 | Φ0 | 10 | 5.1 | 2.5 |
| / |
| LPC-24A | 24 | Φ22*42.3 | 240V | 2A | Φ7.6 | Φ44.5 | Φ34.9 | Φ5.4 | Φ0 | 9.3 | 4.8 | 2.4 |
| / |
| LPC-30A | 30 | Φ22*49.8 | 240V | 2A | Φ7.6 | Φ44.5 | Φ35 | Φ5.5 | Φ0 | 9.3 | 5 | 2.4 |
| / |
| LPC-36A | 36 | Φ22*57.3 | 240V | 2A | Φ7.8 | Φ44.5 | Φ35 | Φ5.5 | Φ0 | 9.3 | 5.1 | 2.4 |
| / |
| LPC-56A | 56 | Φ22*57.3 | 240V | 2A | Φ10 | Φ45 | Φ35 | Φ5 | Φ0 | 9.5 | 5 | 2.5 |
| / |
| LPC063-56A | 56 | Φ25*63 | 240V | 2A | Φ10 | Φ40 | Φ32 | Φ3.2 | Φ0 | 5 | 5 | 5 |
| / |

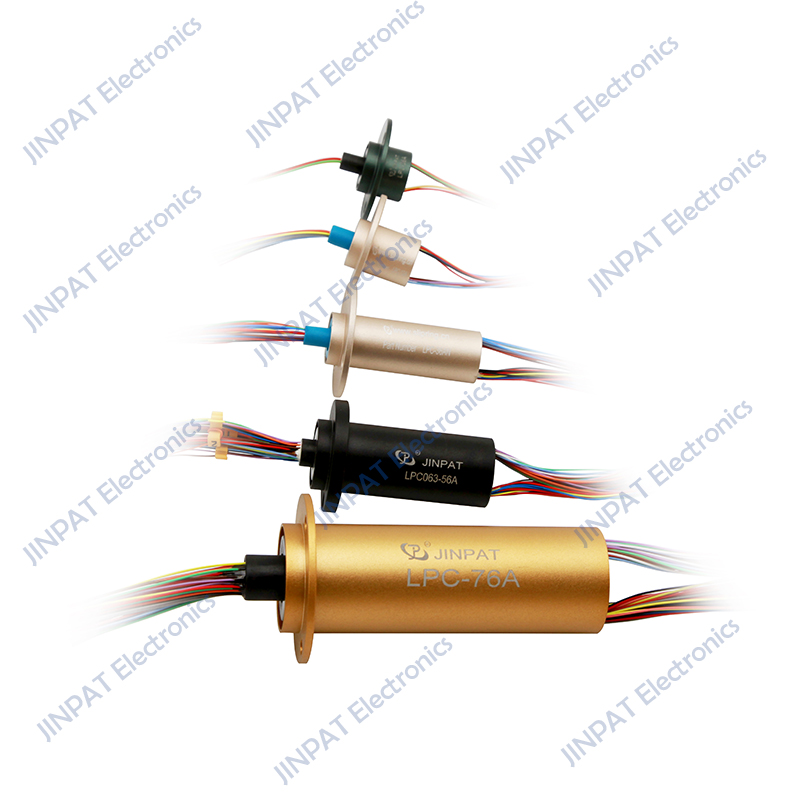

| LPC-76A | 76 | Φ35.5*105.7 | 240V | 2A | Φ15 | Φ55 | Φ46 | Φ5.4 | Φ0 | 12.4 | 6.2 | 2.5 |
| / |
| LPC-125 | 125 | Φ54*286 | 240V | 2A | Φ22.8 | Φ80 | Φ69.5 | Φ5.5 | Φ0 | 16 | 10 | 5 |
| / |
| LPC-06T | 6 | Φ22*32.5 | 240V | 2A | Φ11.8 | Φ44.5 | Φ34.9 | Φ5 | Φ6.4 | 6.7 | 5.1 | 2.4 |
| / |
| LPC-12T | 12 | Φ24.8*39.8 | 240V | 2A | Φ11.8 | Φ44.5 | Φ35 | Φ5 | Φ6.4 | 7.15 | 5.1 | 2.35 |
| / |
| LPC-12T-A | 12 | Φ22*39.8 | 240V | 2A | Φ11.8 | Φ44.5 | Φ34.9 | Φ5 | Φ6.4 | 7.2 | 5.1 | 2.4 |
| / |
| LPC-12T-B | 12 | Φ22*28 | 240V | 2A | Φ9.9 | Φ42 | Φ32 | Φ5 | Φ4.5 | 5.6 | 3.7 | 2.3 |
| / |
| LPC-24T | 24 | Φ24.8*54.8 | 240V | 2A | Φ11.8 | Φ44.5 | Φ34.9 | Φ5 | Φ6.4 | 7.2 | 5.1 | 2.4 |
| / |
| LPC-30T | 30 | Φ24.8*62.3 | 240V | 2A | Φ11.8 | Φ44.5 | Φ34.9 | Φ5 | Φ6 | 7.2 | 5.1 | 2.4 |
| / |
| LPC-36T | 36 | Φ24.8*68.5 | 240V | 2A | Φ11.8 | Φ44.5 | Φ34.9 | Φ5 | Φ65.5 | 7.2 | 5.1 | 2.4 |
| / |
Capsule Slip Rings Wire Color Code
| Wire Size | Ring | Color | Ring | Color | Ring | Color | Ring | Color |
AWG28# Silver-Plated Teflon UL | #1 | BLK | #2 | BRN | #3 | RED | #4 | ORN |
| #5 | YEL | #6 | GRN | #7 | BK BLU | #8 | PPL | |
| #9 | GRY | #10 | WHT | #11 | PNK | #12 | LT BLU | |
| #13 | WHT/BLK | #14 | WHT/BRN | #15 | WHT/RED | #16 | WHT/ORN | |
| #17 | WHT/YEK | #18 | WHT/GRN | #19 | WHT/BLU | #20 | WHT/PPL | |
| # 21 | WHT/GLK | #22 | CLR | #23 | BLK/RED | #24 | BLK/TAN |
LPM Miniature Capsule Slip Rings
LPM Miniature Capsule Slip Ring is able to integrate 30 or more circuits, with optional outer diameter from 12.5mm~16mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compacter and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. Representative models: LPM-04A/06A/12F/18C/24A/30A,etc. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.
Features:
◎Compact size/Gold-to-gold contact/Low resistance/Long service life/Integrate multifarious signals
Options:
◎Rotating speed/Life span/Protection grade/Number of circuits/Current capacity/Size/Housing material/Mass production
Main Applications:
◎Robot vacuum/Rocker camera/Petrol and mine platforms/Testing equipment/Electrical testing equipment/Medical instruments
| LPM Miniature Capsule Slip Rings Series | |||||||||||||
| Model | Number of Circuits | OD*Length （mm） | Voltage （AC/DC） | Current (A) | Rotor Outer Diameter (D1) | Flange Outer Diameter (D2) | Flange Mounting Hole Position (D3) | Flange Mounting Hole Inner Diameter (D4) | Rotor Exposed Length (L1) | Flange Position (L2) | Flange Thickness (L3) | Details | Downloads |
| LPM-04A | 4 | Φ12.5*15.6 | 240V | 1-2A | Φ5 | Φ24 | Φ18 | Φ2.4 | 2.5 | 1.7 | 1.5 |  | / |
| LPM-06A | 6 | Φ12.5*18.2 | 240V | 1-2A | Φ5 | Φ24 | Φ18 | Φ3.2 | 2.3 | 0 | 1.2 | | / |
| LPM-06B | 6 | Φ12.5*18.2 | 240V | 1-2A | Φ5 | Φ24 | Φ18 | Φ3.2 | 2.3 | 17 | 1.2 | | / |
| LPM-08A | 8 | Φ12.5*25.3 | 240V | 1-2A | Φ5 | Φ24 | Φ18 | Φ3.2 | 2.2 | 19.3 | 1 | | / |
| LPM-12A | 12 | Φ12.5*25.2 | 240V | 1-2A | Φ5 | Φ24 | Φ18 | Φ3.2 | 2.2 | 5 | 1 | | / |
| LPM-12B | 12 | Φ12.5*25.5 | 240V | 1-2A | Φ5 | Φ29 | Φ22 | Φ4 | 2.3 | 0 | 2.3 | | / |
| LPM-12U | 12 | Φ12.5*25.5 | 240V | 1-2A | Φ5 | Φ0 | Φ0 | Φ0 | 2.4 | 0 | 0 | | / |
| LPM-18A | 18 | Φ15.5*40 | 240V | 1-2A | Φ7 | Φ32 | Φ25 | Φ3.5 | 6 | 0 | 2 | | / |
| LPM-18C | 18 | Φ12.8*23.5 | 240V | 1-2A | Φ5 | Φ22.3 | Φ17.5 | Φ3.2 | 4 | 0 | 2.2 | | / |
| LPM-20B | 20 | Φ15.5*35 | 240V | 1-2A | Φ7 | Φ32 | Φ25 | Φ3.5 | 6 | 0 | 2 | | / |
| LPM-24A | 24 | Φ15.5*39.7 | 240V | 1-2A | Φ7 | Φ32 | Φ25 | Φ2.8 | 6 | 0 | 2.2 | | / |

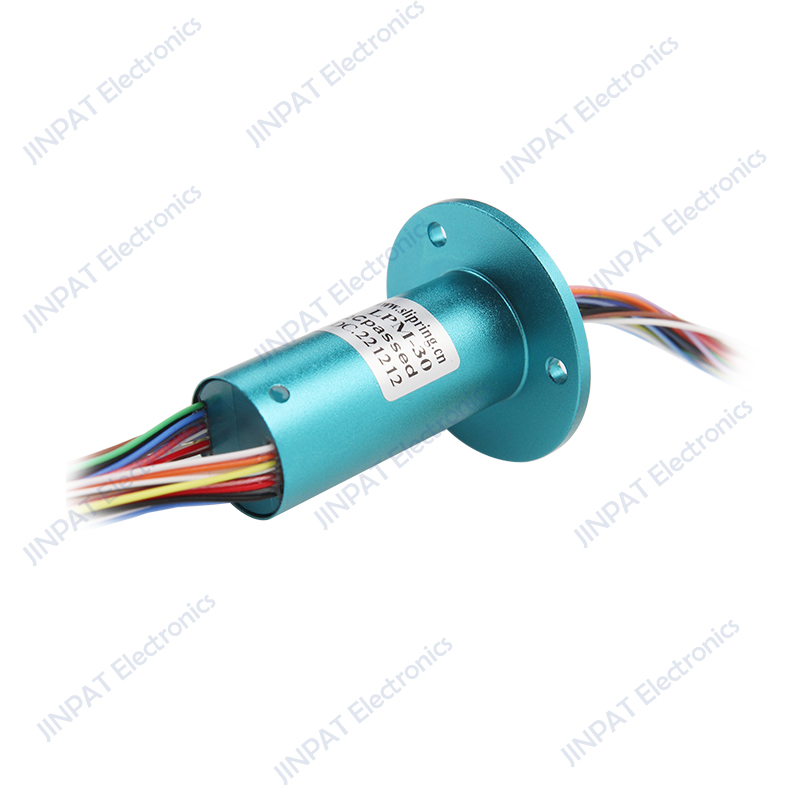

| LPM-30A | 30 | Φ16*37 | 240V | 1-2A | Φ13 | Φ0 | Φ0 | Φ0 | 2.5 | 0 | 2 | | / |
| LPM-30B | 30 | Φ16*37 | 240V | 1-2A | Φ7 | Φ32 | Φ25 | Φ2.8 | 7 | 0 | 2.2 | | / |

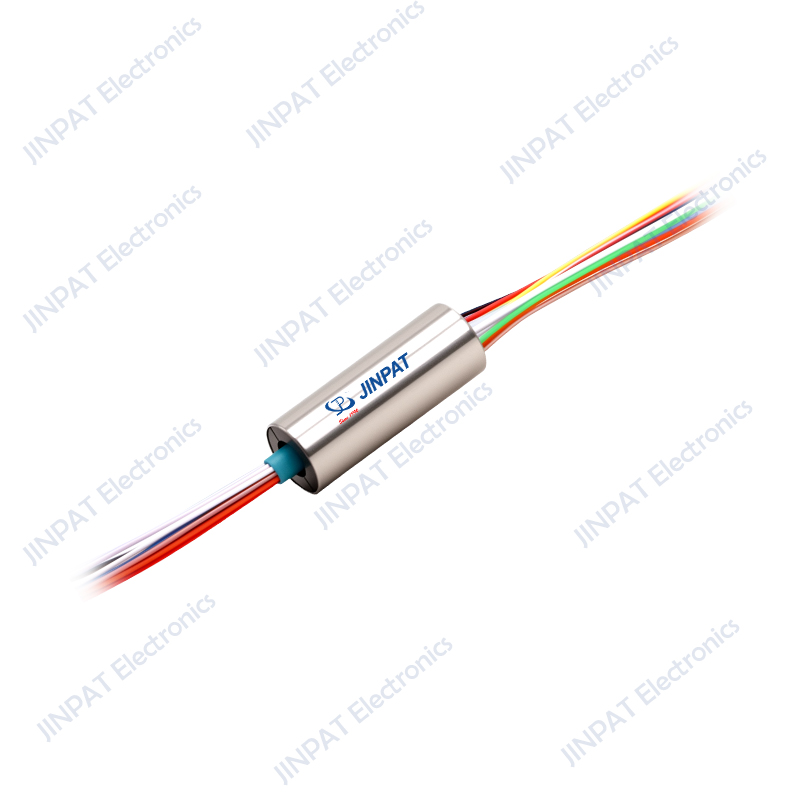

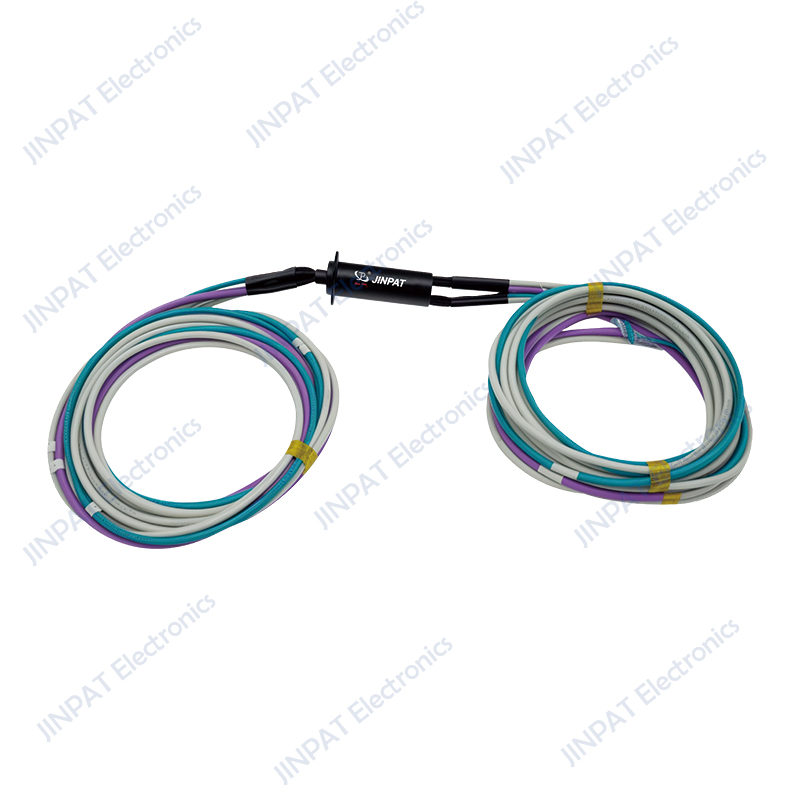

LPMS Super Miniature Capsule Slip Rings
LPMS Super Miniature Capsule Slip Ring is able to integrate 12 or more circuits, with optional outer diameter from 5.5mm~11.1mm. This series is super mini size, with precise design using military-standard material. It can adapt to both high and low ambient temperature with a low resistance and small torque. These characteristics guarantee smooth and reliable operation of the slip rings and thus able to fit in high precision equipment or other applications with limited space and harsh conditions. Representative models: LPMS-05D/08A/08B/08C/08D/12U, etc. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.
Features:
◎Ultra compact size/Precise design/Military-standard material /Low resistance
Options:
◎Rotating speed/Number of circuits/Housing material/Protection grade/Length of leads and /Leads exit/Integrate power transmission
Main Applications:
◎Intelligent Robots/Commercial UAV/Manual stabilizer/VR devices
| LPMS Super Miniature Capsule Slip Rings Series | ||||||||
| Model | Number of Circuits | Voltage （AC/DC） | Current (A) | OD*Length （mm） | Rotor Exposed Length (L1) | Rotor Outer Diameter (D1) | Details | Downloads |
| LPMS-04A | 4 | 48V | 1A | Φ7.9*10.8 | 5 | Φ4 | | / |
| LPMS-04C | 4 | 48V | 1A | Φ8.5*10.8 | 3 | Φ2.5 | | / |
| LPMS-05D | 5 | 48V | 1A | Φ5.5*9.6 | 1 | Φ2 | | / |
| LPMS-06A | 6 | 48V | 1A | Φ7.9*11.2 | 3 | Φ3 | | / |
| LPMS-06B | 6 | 48V | 1A | Φ8.5*11.2 | 3 | Φ3 | | / |
| LPMS-08A | 8 | 48V | 1A | Φ8.4*11.7 | 1.1 | Φ3 | | / |
| LPMS-08C | 8 | 48V | 1A | Φ6.5*11.8 | 2 | Φ2.4 | | / |
| LPMS-08D | 8 | 48V | 1A | Φ5.5*13.5 | 1 | Φ2 | | / |
| LPMS-10A | 10 | 48V | 1A | Φ10*13.6 | 6 | Φ6.3 | | / |
| LPMS-10B | 10 | 48V | 1A | Φ10.5*13.6 | 4.2 | Φ5 | | / |
| LPMS-10C | 10 | 48V | 1A | Φ7.4*13.5 | 2.1 | Φ2.1 | | / |
| LPMS-12A | 12 | 48V | 1A | Φ11.1*24 | 2 | Φ5 | | / |
| LPMS-12U | 12 | 48V | 1A | Φ6.5*17.4 | 2 | Φ2.3 | | / |
Capsule Slip Rings Installation Specifications
1. This series of slip ring has integrated flange on the stator side, can be mounted directly to the application or bracket to stabilize the stator.
2. Rotor should be mounted on the center axis of the application to ensure concentric drive. Rotor leads are not recommended to be used for drive purpose; otherwise, customers should carry out a close evaluation of their applications beforehand.
3. As demonstrated above, apply screw washers when installing the slip rings to avoid over-fastening of the flange and screws.
4. The slip ring is not designed to bear the weight of the equipment to which it is connected. Rotating equipment should be secured so that no axial or radial load is applied to the slip ring rotor.
5. The slip ring should be protected from dust and moisture. If applied outdoors, protection measures must be taken (except for Specific Custom Slip Rings).
6. Secure all leads so that they do not suffer friction and damage. Care should be taken when routing and securing the leads so that no side loading of the slip ring occurs.
7. Be careful not to damage the shield when stripping the wire ends.
Miniature Capsule Slip Rings Installation Specifications
1. The slip ring is designed to be mounted in the fixing part for the stator with no flange.
2. The fixing part for the rotor should be connected well to guarantee a concentric drive of the slip ring.
If the rotor lead wires are used as the drive by customers, it should be evaluated according to the usage of the product.
3. The slip ring cannot bear the weight of its connected equipment, of which the rotary parts should be fixed tightly to avoid
its weight from being added to the rotor part of the slip ring.
4. The slip ring should be protected from dust and moist. If it is used outdoors, a protection cover should be considered.
(Custom slip rings are not included)
5. Protect all wire skins from being damaged during the rotation of the equipment.
The end of all wires should not bear weight, withstand force, or be pulled in wires arrangement.
6. Do not damage the outer skin of wires’ other parts during the operation of wire stripping.
LPS Separate Slip Rings Installation Specifications
1. The slip ring is designed to be mounted in a separate way, in which the rotor and stator is separately fixed.
2. Align the grooves of rings and brush wires and match well in case of deviation from rings after the rotor of
the slip ring is fixed on the spindle.
3. The slip ring should be protected from dust and moist. If it is used outdoors, a protection cover should be considered.
(Custom slip rings are not included)
4. Protect all wire skins from being damaged during the rotation of the equipment. The end of all wires should not
bear weight, withstand force, or be pulled in wires arrangement.
5. Use an exclusive tool while operating wire stripping, and do not damage the wire core.
6. Wield wires to the wire terminals with careful amount of soldering tin in stator wire connection, avoiding
electric performance weakening between rings due to excessive soldering tin.
