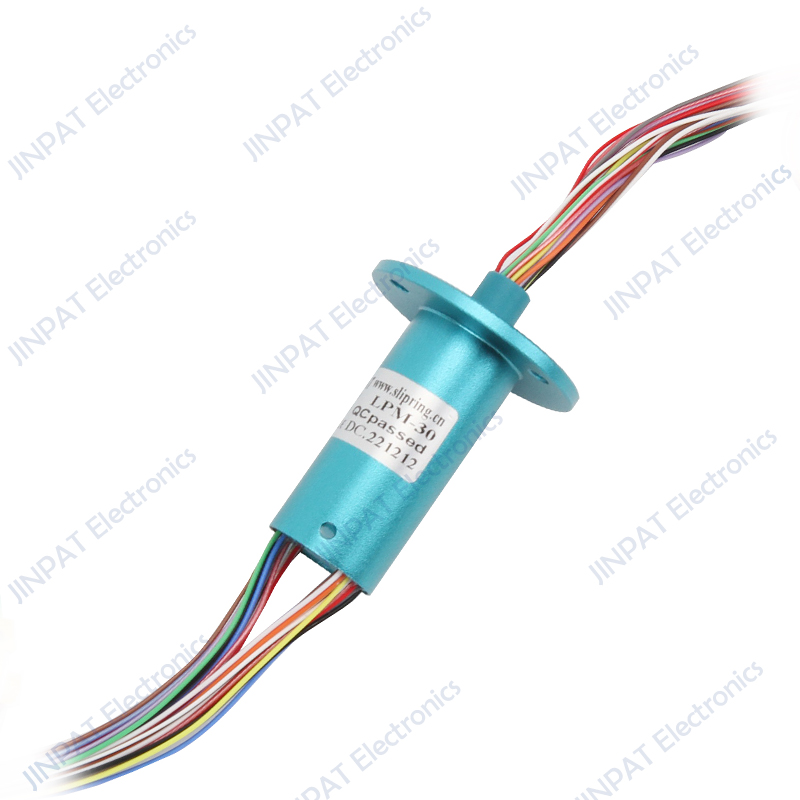

LPM-30/YB/YD/YU Miniature Capsule Slip Rings
A slip ring capsule can be used in an electromechanical application to transfer low power and data over continuous rotary interface. A slip ring is also called a rotary electrical interface, commutator, collector, swivel or a rotary joint.
The LPM-30A compact slip ring provides 30 circuits and operational speeds up to 300 rpm. Our fiber brush technology minimizes contact wear and Precision assembly while it extends operational life.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 30CKT | Working Speed | 0~300rpm |
| Detail | 30X1A(You can go through 2A under certain circumstances ) | Contact Material | Gold to Gold | |
| Rating Voltage | 110VAC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength | ≥200VAC@50Hz(P) ≥100VAC@50Hz(S) | Lead Wire Length | Stator: 250士5mm Rotor: 250士5mm | |
| Insulation Resistance | ≥50MΩ@200VDC(P) ≥10MΩ@100VDC(S) | Dynamic Resistance Fluctuation Balue | ≤35mΩ | |
| Environment | Remarks | |||
| Working Temperature | -20°C~+60° | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note:"P" stands dor power, "S" stands for signal | ||

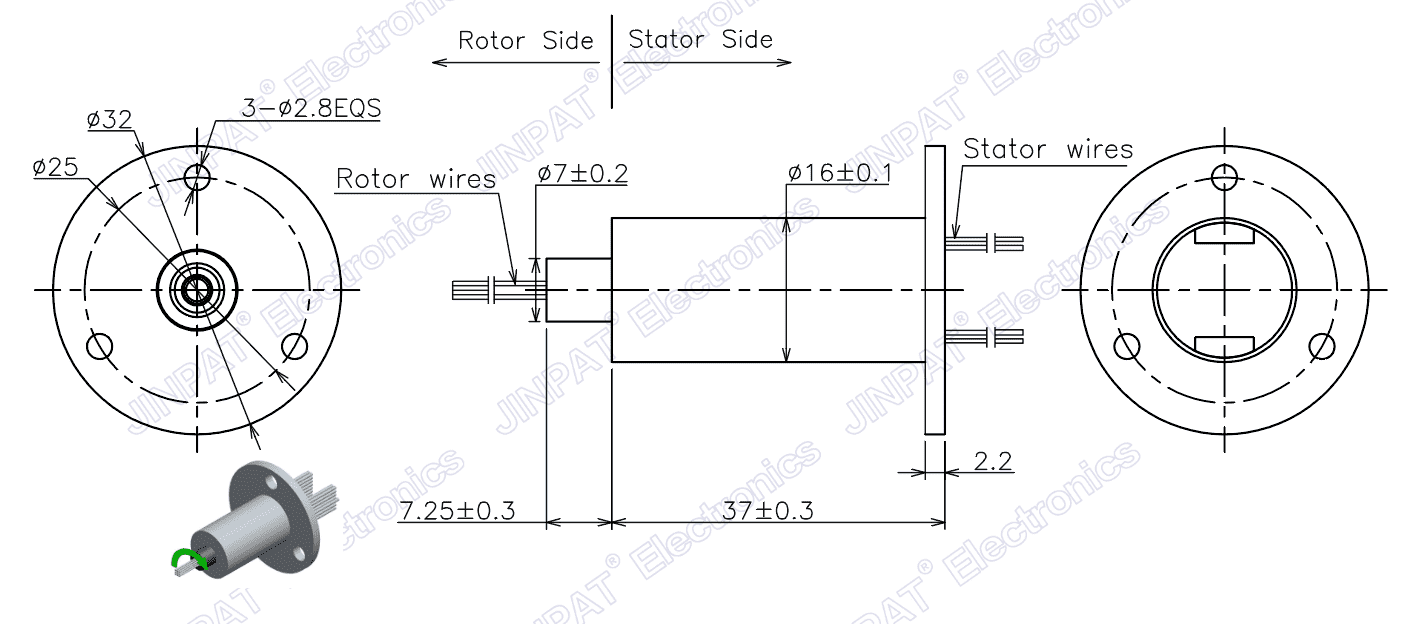

LPM-30-Outline Drawing

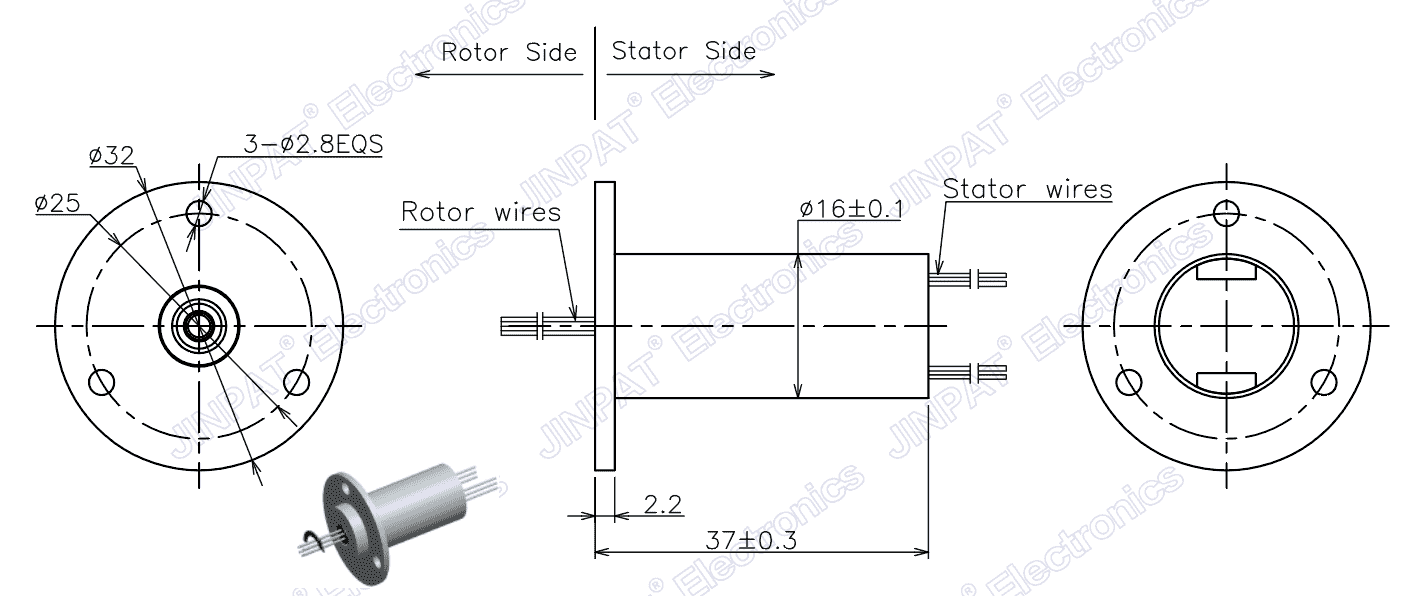

LPM-30YB-Outline Drawing

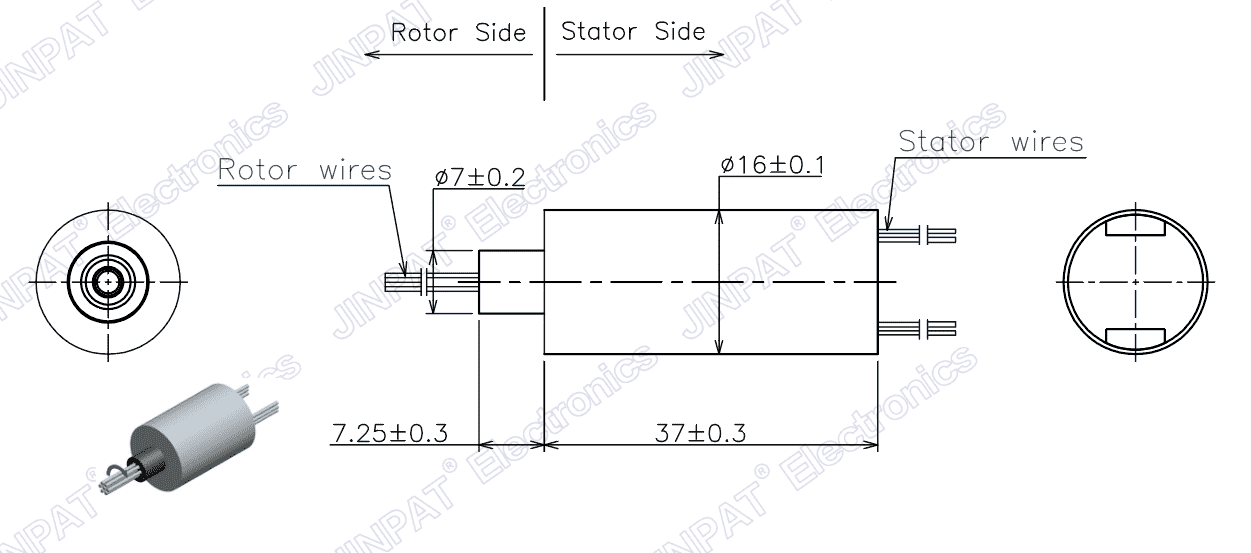

LPM-30YD-Outline Drawing
LPM-30YU-Outline Drawing
Name
Email*
*Phone
Message
1F-4F，Building 6, Detai Industrial District, No.496, Huarong Road, Langkou Neighborhood,
total 0 Sheet，Only 5 images can be uploaded, each less than 5m.
