SPM
——
Support stable transmission of fieldbus, Fast/Gigabit Ethernet, and HD/3G-SDI video signals. With a max outer diameter of just 12 mm, they are ideal for compact systems in robotics, inspection devices, metrology, and CCTV applications.

SPC
——
Support reliable transmission of fieldbus, Fast/Gigabit/10G Ethernet, and 12G-SDI signals (SMPTE ST 2082-10), enabling 4K video at up to 4096 × 2160p @60Hz. With a maximum outer diameter of 20–22 mm and optional coaxial integration, they are ideal for advanced systems in robotics, inspection, metrology, packaging, and UHD video applications.
SPT000-168
——
Designed for heavy-duty use, supports up to 45 rings with up to 100A and 400 VAC/DC; operates at ≤100 rpm in -20 °C to +70 °C; IP54/IP65 protection with offshore-grade options. Supports fieldbus and Fast Ethernet (100-BaseT Cat.5e & Cat.6); customizable interfaces for flexible integration in harsh environments.
Application:Machine Tool/Wind Turbine Pitch System

SPT017-050
——
Fieldbus and Fast Ethernet compatible (100-BaseT Cat.5e & Cat.6 certified), supports up to 24 rings: 12 × 6 A for power and 24  for signal. Rated up to 240 VAC/VDC, with 500 VAC dielectric strength and ≥1000 MΩ insulation resistance. Compact through-bore design with Ø17 mm inner diameter. Operates up to 250 rpm. Custom designs available on request.
Application:Drain Inspection/Packaging Machine
SPT020-058
——
Supports up to 5 rings (3 power rings up to 20 A, 2 signal rings); 48/240 VAC/DC; up to 500 rpm with IP64 protection. Standard spring clamp terminals, other options available. Service life up to 750 million revolutions. Replaceable brushes for easy maintenance. Customizable inner diameter up to Ø20 mm.
Application:Packaging Machine/ Sealing rollers

SPT030-080
——
Supports fieldbus and Fast Ethernet (100-BaseT Cat.5e & Cat.6 certified); up to 24 rings at 3 A for signal or 12 rings at 16 A for power, with flexible combinations available. Rated for 240 VAC/DC and speeds up to 300 rpm. Features steel ball bearings, IP54 protection, and a robust design with Ø30 mm inner and 80 mm outer diameter. Operates from –20 °C to +80 °C. Includes 1000 mm lead wires on both rotor and stator. Custom designs available on request.
Application:beverage filling system/drain inspection/food processing/metrology system
SPT030-088
——
Designed for high-speed applications up to 1500 rpm, this series supports 4–10 rings with up to 25 A and 380 V. Features a hollow shaft (up to Ø30 mm), operating from –20 °C to +80 °C. Default IP00 protection, optional IP51 with cover. Ideal for demanding environments requiring robust performance and flexible installation.
Application:Beverage Filling System/Food Processing/Packaging Machine

SPT050-100
——
Supports up to 24 rings with power circuits up to 16A and signal circuits up to 3A; rated for 400VAC power and 240VAC/DC signal voltage; operates at speeds up to 120 rpm with IP54 protection; suitable for harsh environments with operating temperatures from -20 °C to +80 °C.
Application:Machine Tool/Packaging Machine/Wind Turbine Pitch System


SPT050-104
——
Supports up to 24 rings with up to 10 A per ring, rated at 48 VDC. Offers high insulation resistance (≥1000 MΩ at 500 VDC) and dielectric strength up to 500 VAC. Operates reliably up to 400 rpm with IP54 protection and a durable fiber-reinforced plastic housing. Supports fieldbus transmission and is maintenance-free for up to 150 million revolutions, with replaceable brush blocks for extended service life.
Application:Drain Inspection/Packaging Machine


SPT050-105
——
Supports Fast Ethernet (100-BaseT Cat.5e & Cat.6) and Gigabit Ethernet (1000-BaseT Cat.5e). Up to 30 rings with max. 16 A, rated for 400 VAC/DC. Operates up to 400 rpm. Protection classes IP51 and IP65 available. Reliable, maintenance-free design for flexible installation.
Application:Machine Tool/Packaging Machine/Wind Turbine Pitch System

SPT065-120
——
Supports Fast Ethernet (100-BaseT Cat.5e & Cat.6) and fieldbus signals. Features up to 12 rings with up to 30 A and 240 VAC/DC. Through-bore design with Ø30 mm inner diameter and customizable length. Operates reliably up to 300 rpm. Available with IP54 or IP65 protection. Flexible electrical connections via flying leads, cables, or connectors.
Application:Machine Tool/Packaging Machine/Wind Turbine Pitch System

SR-XX-F/M
——
Outer diameter: up to 29 mm, supports up to 9 rings (10A each), 48 VDC, dielectric strength ≥500 VAC, insulation resistance >100 MΩ. Durable plastic housing, customizable cable or connector interfaces. Supports fieldbus and Fast Ethernet (100-BaseT Cat.5e & Cat.6) for versatile signal integration.

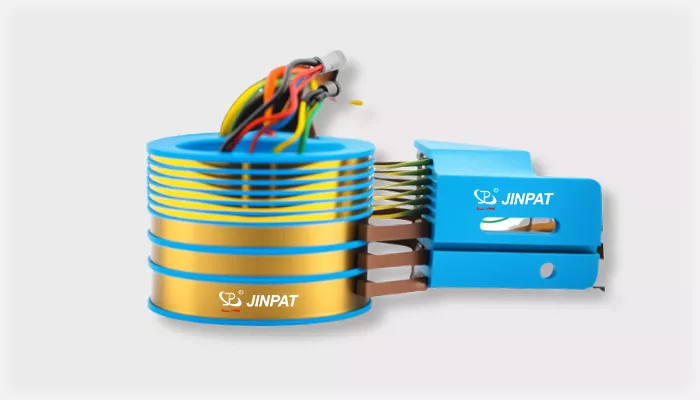

SR-XX-B/C
——
Inner diameter: 50 mm (optional 60 mm / 70 mm); supports up to 9 rings carrying 10A (max. 16A) or 2A for signals, rated to 48 VDC, dielectric strength ≥500 VAC, insulation resistance >100 MΩ. Reliable at 0~20 rpm, 0~50 °C. Custom ring / cable configurations, durable plastic housing, and flexible cable or connector options available.
