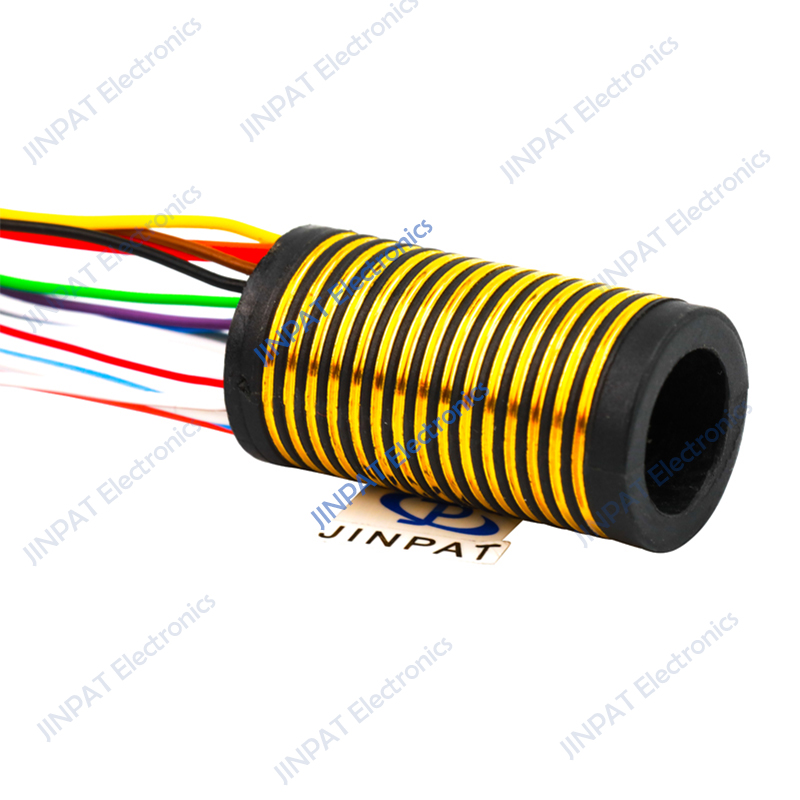

LPS-15C Separate Slip Rings

Description:

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanically capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPS-15 separate slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPS-15 provides smoother running, lower torque and lower electrical noise than competitive slip rings.

Features

◆ 15 circuits models

◆ Speed up to 100 rpm continuous

◆ Gold-Gold contacts

◆ 250mm standard lead length

◆ Compatible with data bus protocols

◆ Sealed units are available

◆ Flexible, color-coded, silver-plated, ead wires

◆ Precision ball bearings meet or exceed life requirements for most commercial applications

Advantages

◆ Low torque minimizes system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth running

◆ Low electrical noise

◆ Quick shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability

LPS-15C -Outline Drawing
