LPM-24/YB/YD/YJ/YU Miniature Capsule Slip Rings
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. The can improve electromechanical capability, simplify system design, eliminate possible damage while rotation.

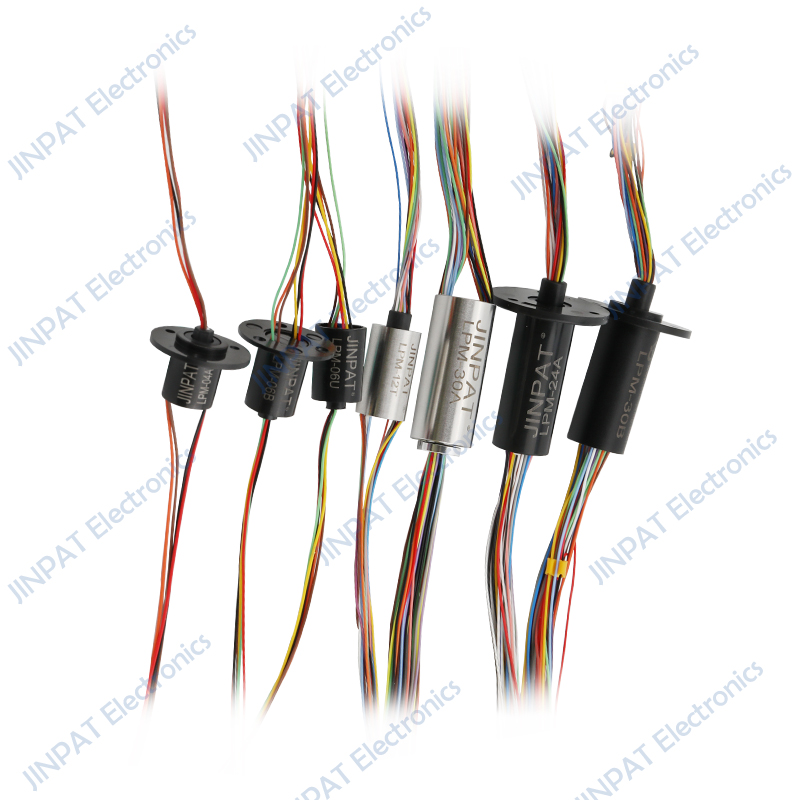

The LPM-24A miniature slip ring is a standard, off-the shelf unit that uses gold contacts at the rotary interface. Color
coded lead wires are used on both the stator and rotor for simplifying electrical
connections. The LPM-24A allows tremendous flexibility in dealing with system size restrictions. It is available in 4, 6, 12, 18, 20 and 24 circuit configurations.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 24CKT | Working Speed | 0~300rpm |
| Detail | 24X1A(You can go through 2A under certain circumstances ) | Contact Material | Gold to Gold | |
| Rating Voltage | 110VAC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength | ≥200VAC@50Hz(P) ≥100VAC@50Hz(S) | Lead Wire Length | Stator: 250士5mm Rotor: 250士5mm | |
| Insulation Resistance | ≥50MΩ@200VDC(P) ≥10MΩ@100VDC(S) | Dynamic Resistance Fluctuation Balue | ≤35mΩ | |
| Environment | Remarks | |||
| Working Temperature | -20°C~+60° | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note:"P" stands dor power, "S" stands for signal | ||
LPM-24-Outline Drawing

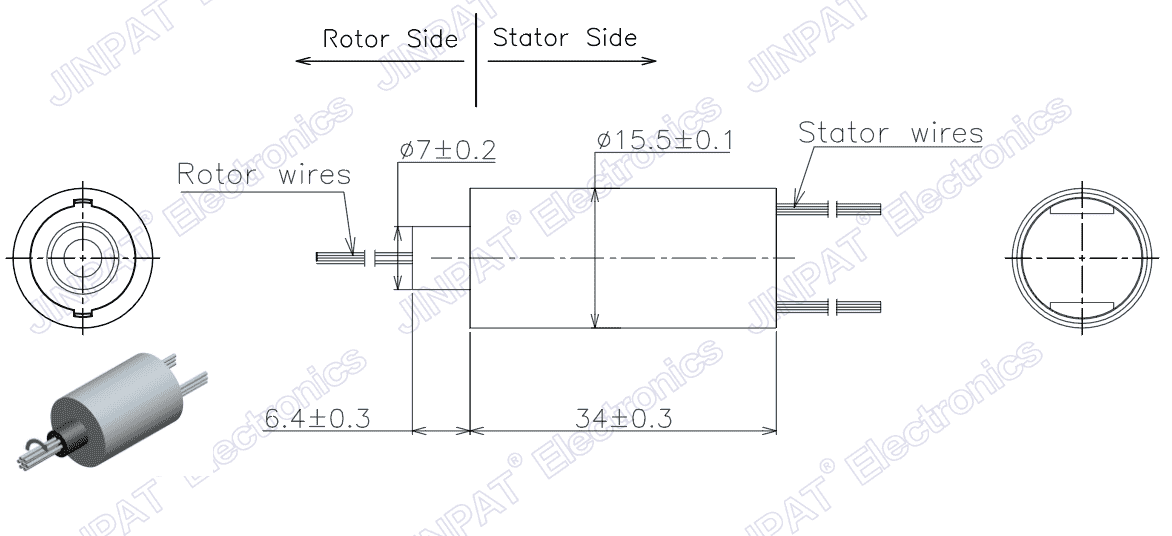

LPM-24YB-Outline Drawing

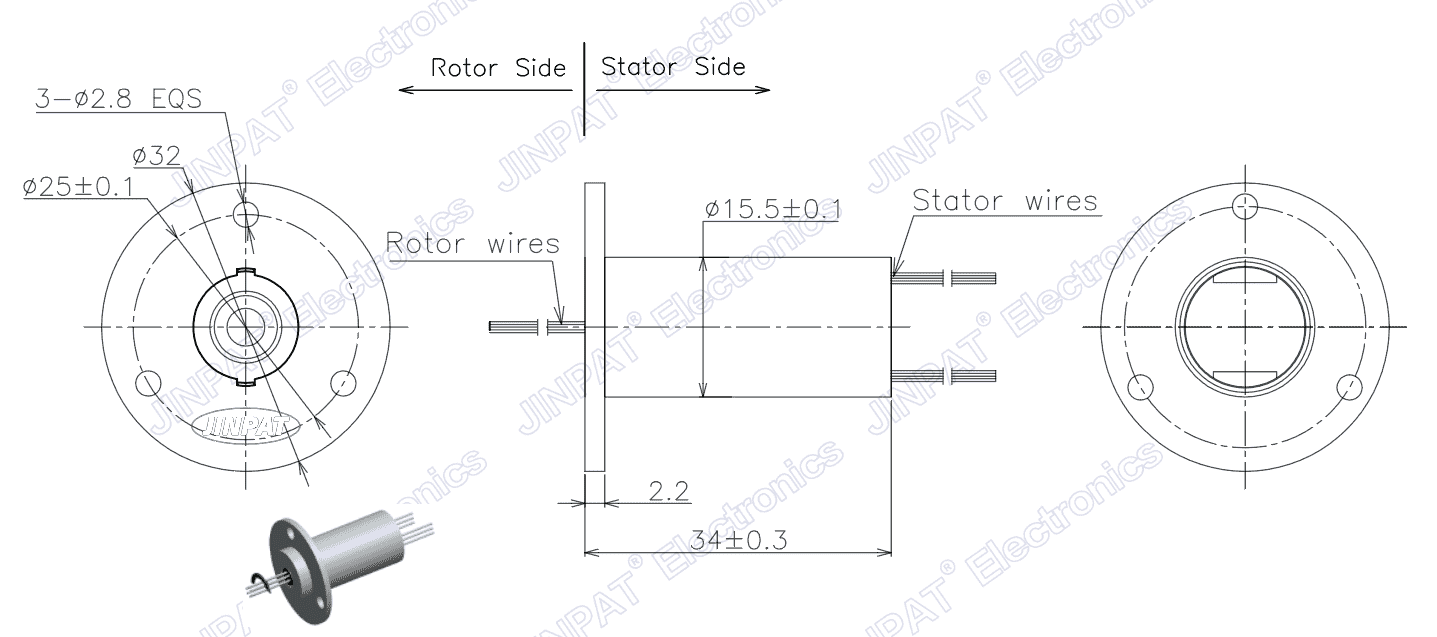

LPM-24YD-Outline Drawing

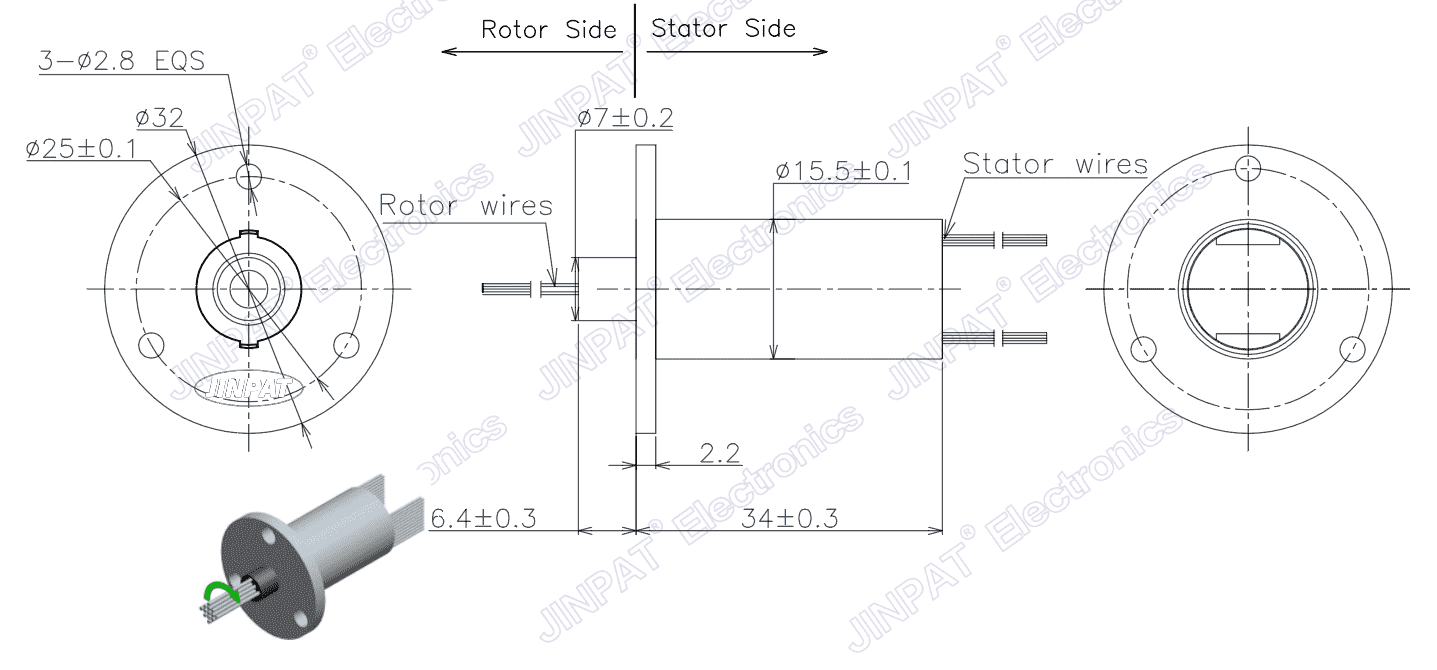

LPM-24YJ-Outline Drawing
LPM-24YU-Outline Drawing
