LPM-04 Miniature Capsule Slip Rings

copy Link

Facebook

Twitter

Number of Circuits 4CKT

Insulation Resistance ≥50MΩ200VDC(P) ≥10MΩ100VDC(S)

Voltage 110VAC/DC

Consult immediately

Model ListInstallationReview(0)

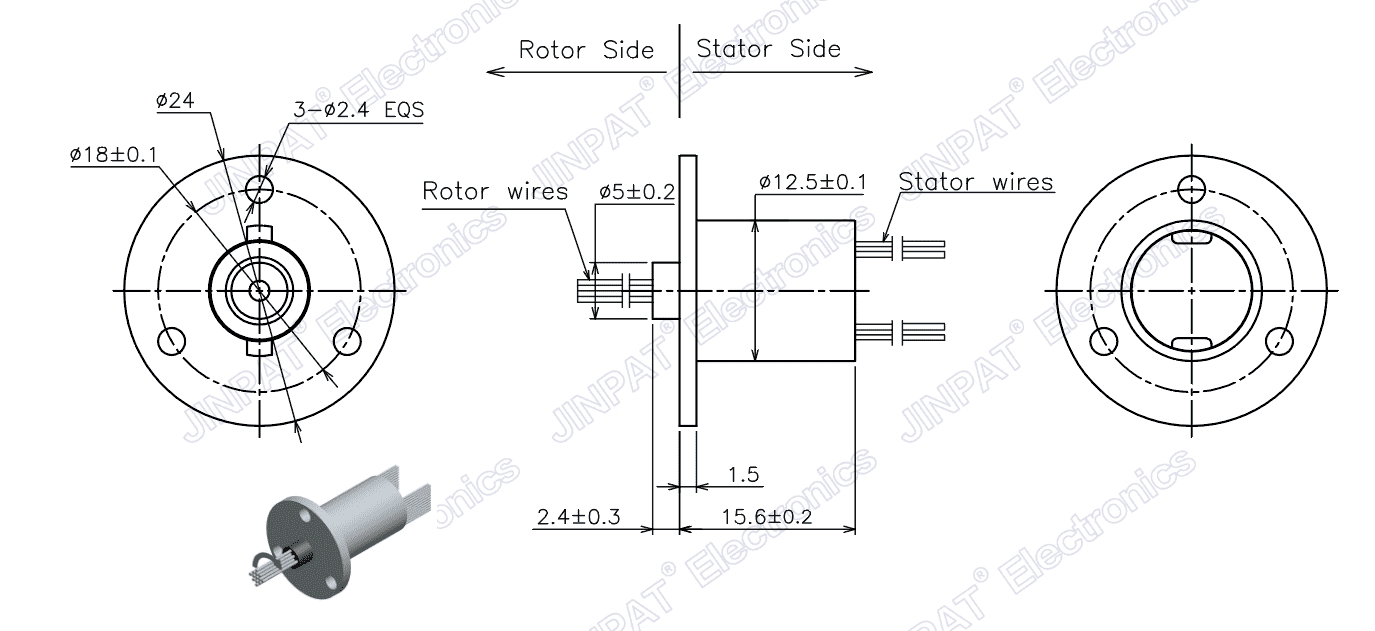

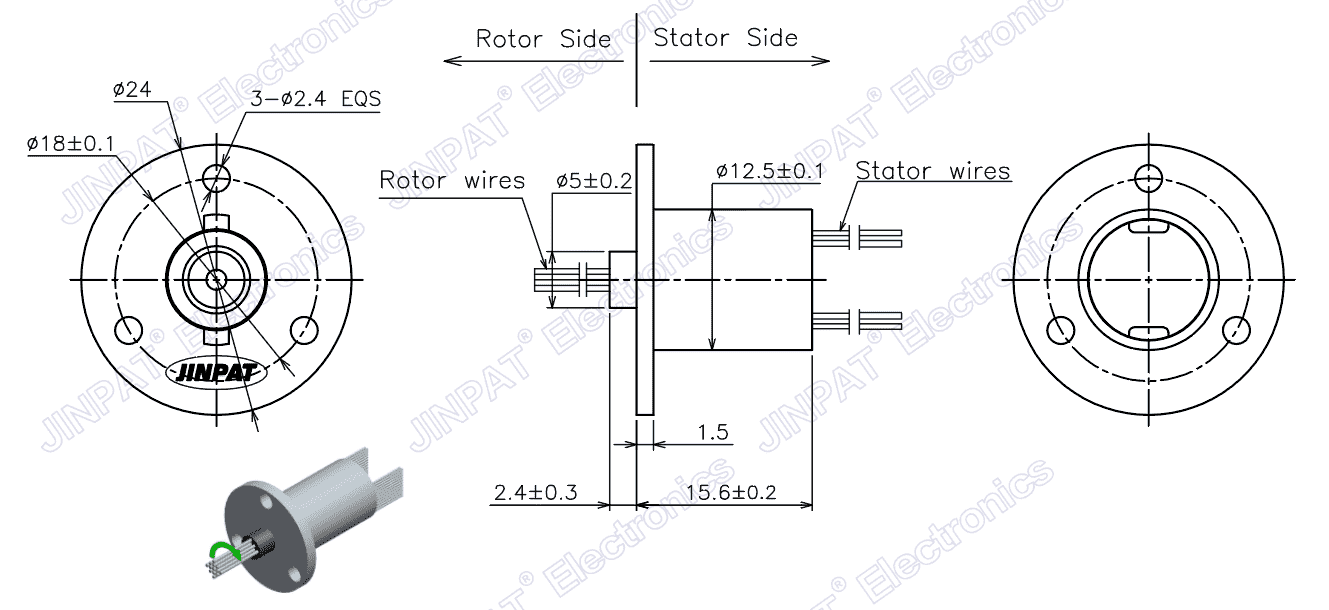

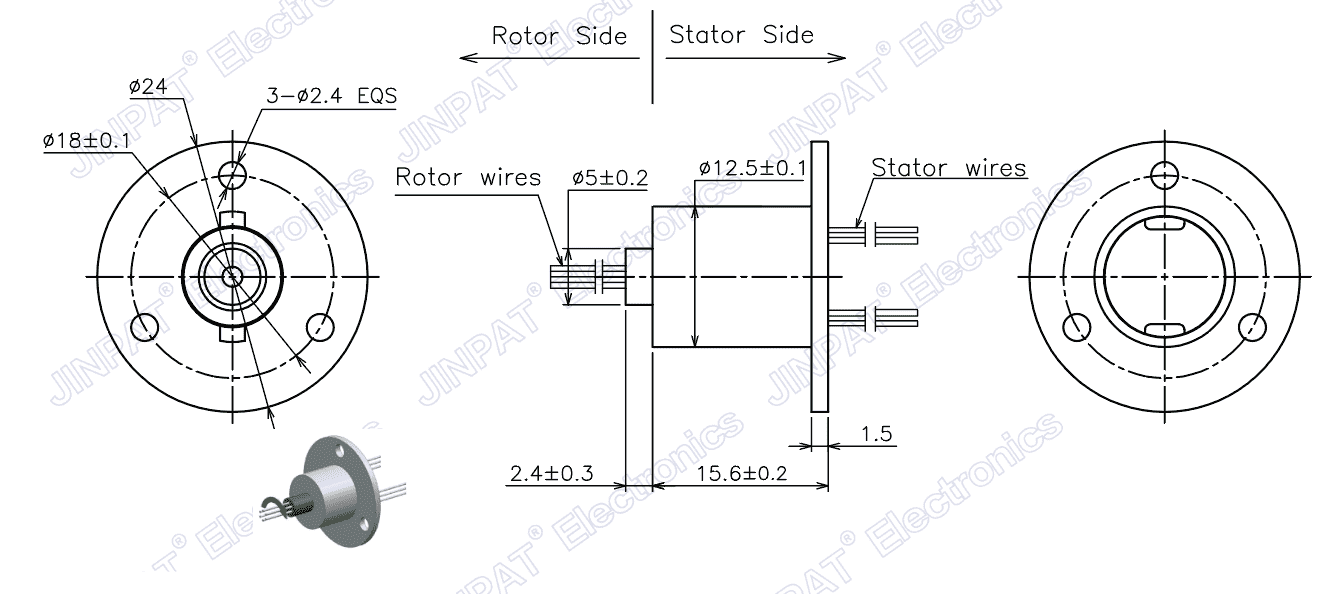

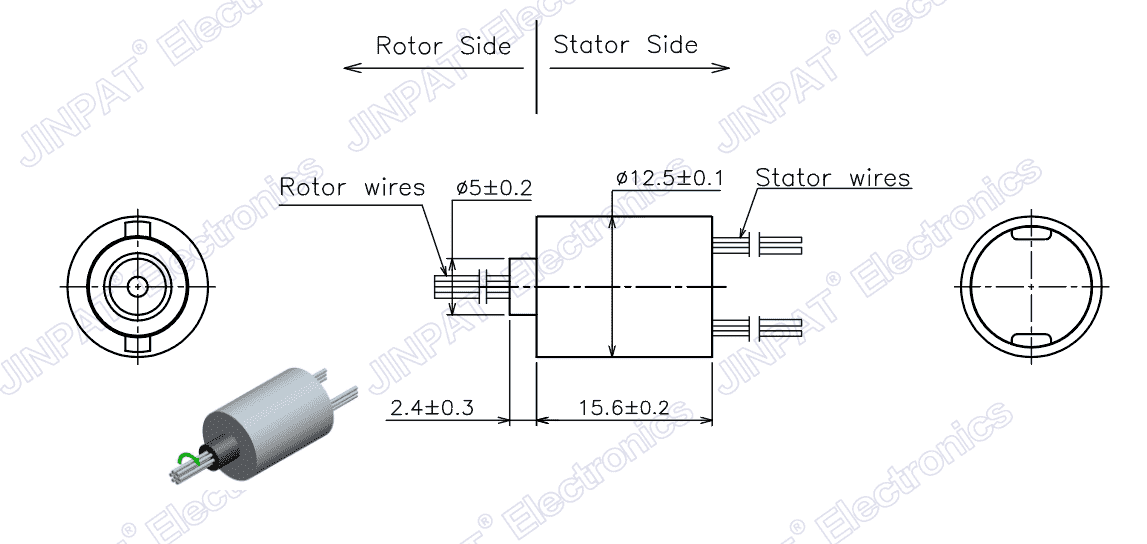

LPM-04YB/YD/YJ/YU Miniature Slip Ring

Description

LPM04A Miniature Slip Ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPM-04A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

The LPM-04A allows tremendous flexibility in dealing with system size restrictions. It is available in 1-4 circuit configurations.

Features

1. 4 circuits models

2. 1 amps per circuit , 240 VAC/DC

3. Precision assembly to provide exceptional rotational life

4. Speed up to 300 rpm continuous

5. Gold-Gold contacts

6. Flexible, color-coded, silver-plated, stranded copper lead wire

7. Superior handling of low level control signals

8. Metal housing optional

Electronic & Electruc			Mechanical
Circuits	Total	4CKT	Working Speed	0~300rpm
	Detail	4X2A	Contact Material	Gold to Gold
Rating Voltage		110VAC/DC	Housing Material	Engineering plastics
Dielectric Strength		≥200VAC@50Hz(P) ≥100VAC@50Hz(S)	Lead Wire Length	Stator: 250士5mm Rotor: 250士5mm
Insulation Resistance		≥500MΩ@200VDC(P) ≥10MΩ@100VDC(S)	Dynamic Resistance Fluctuation Balue	≤35mΩ
mEnvironment			Remarks
Working Temperature		-20°C~+60°	Application	/
Working Humidity		≤60%RH	Other	/
IP		IP40	Note:"P" stands dor power, "S" stands for signal
