LPC-06 Capsule Slip Ring

copy Link

Facebook

Twitter

Number of Circuits 6

Current 2A

Voltage 240v

Optional It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc.

Consult immediately

Model ListInstallationReview(0)

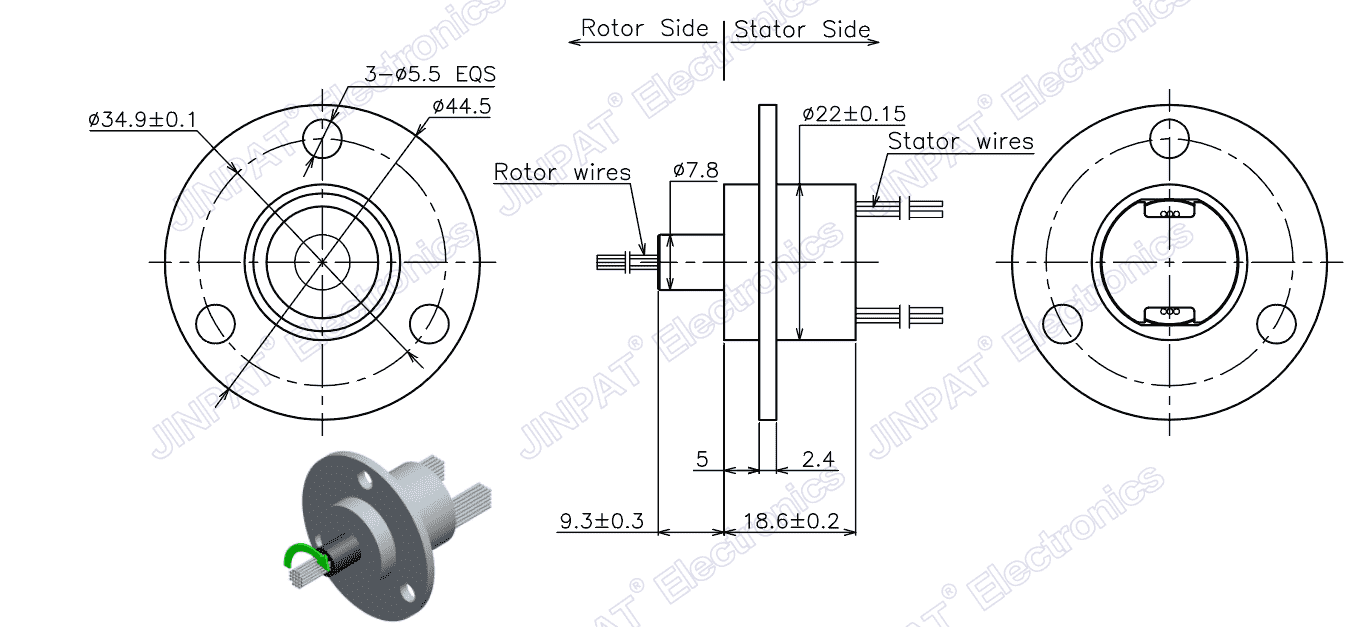

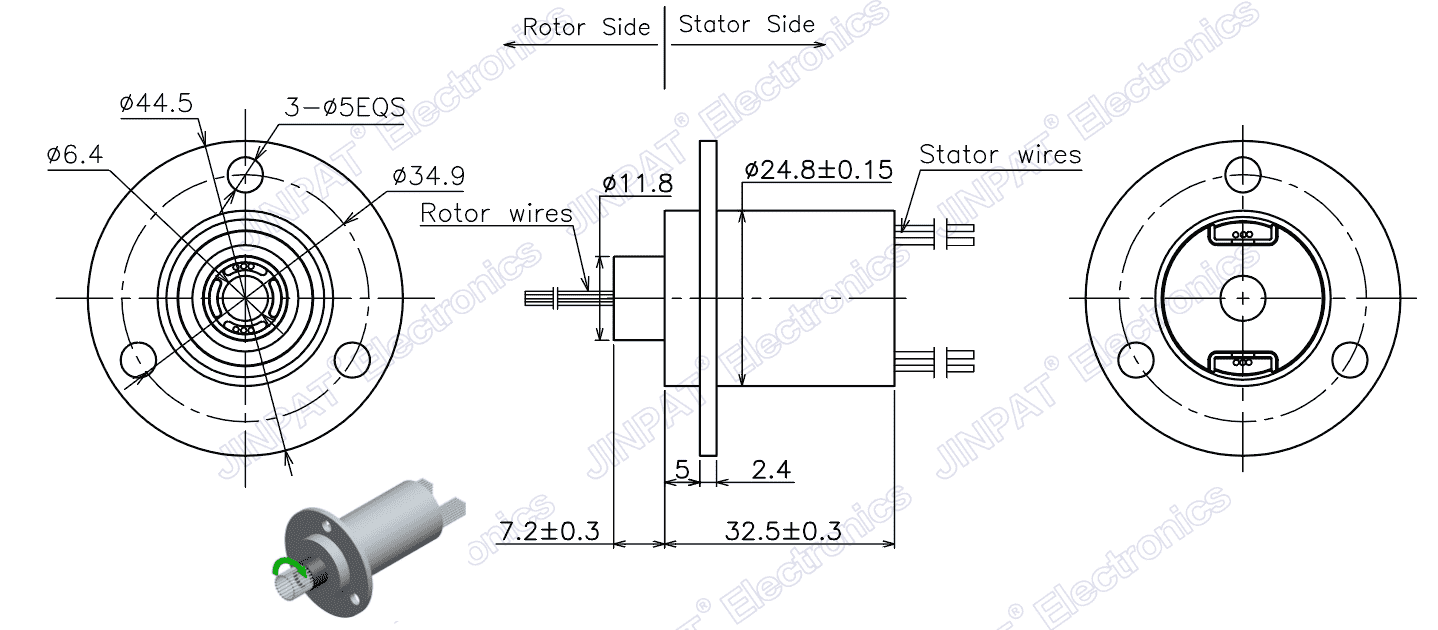

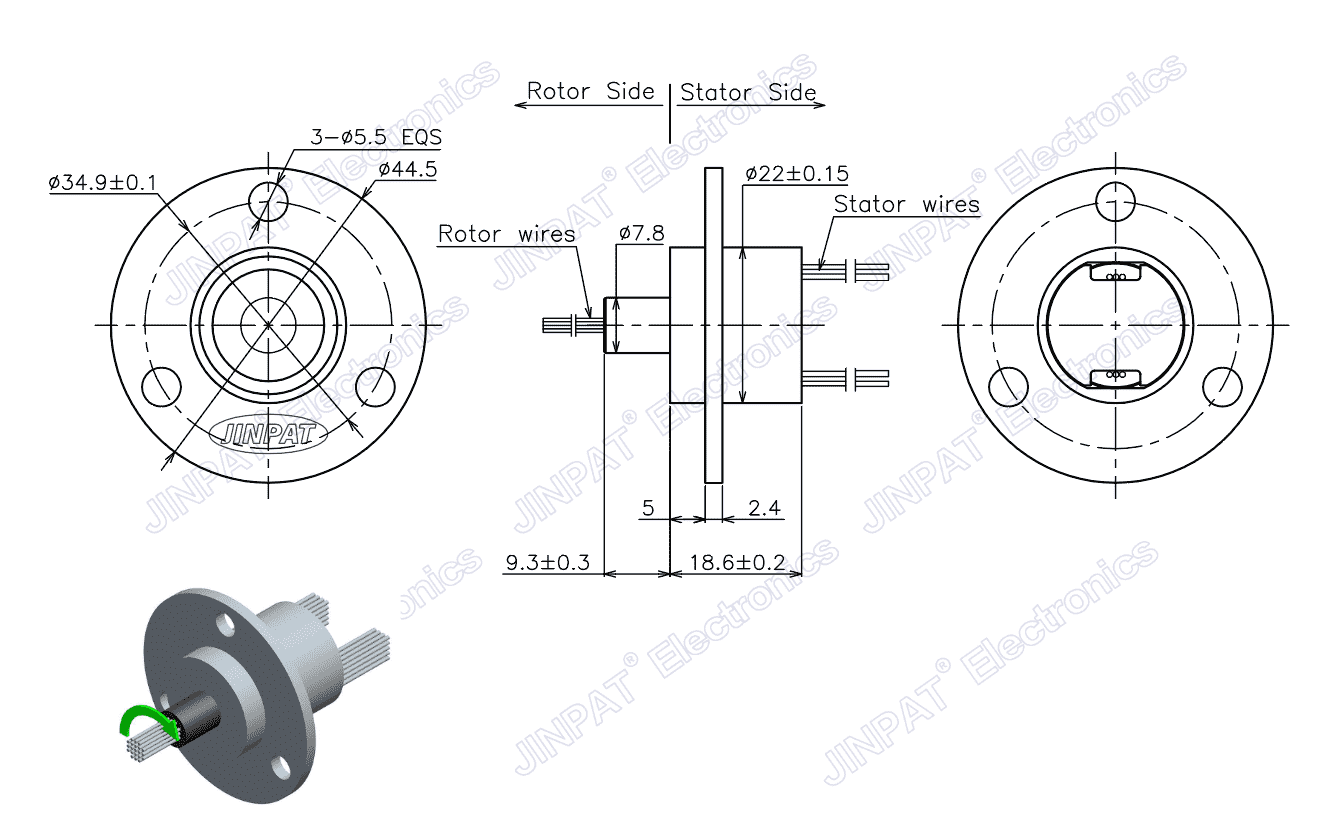

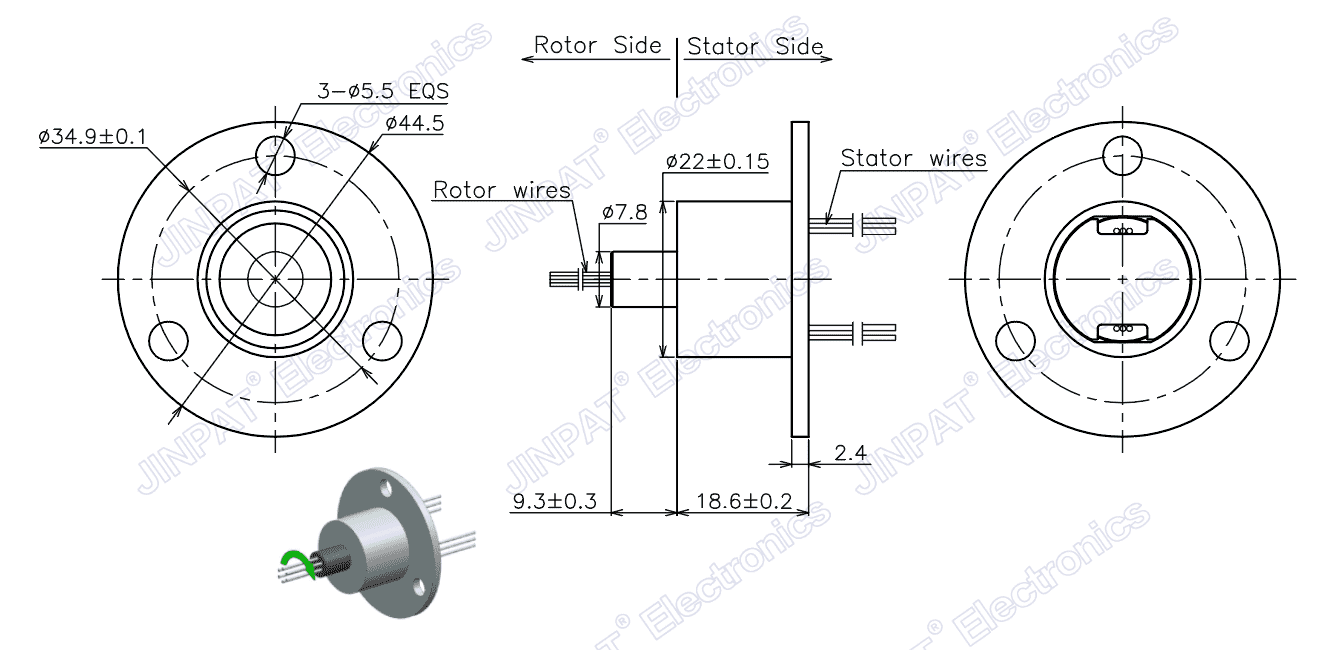

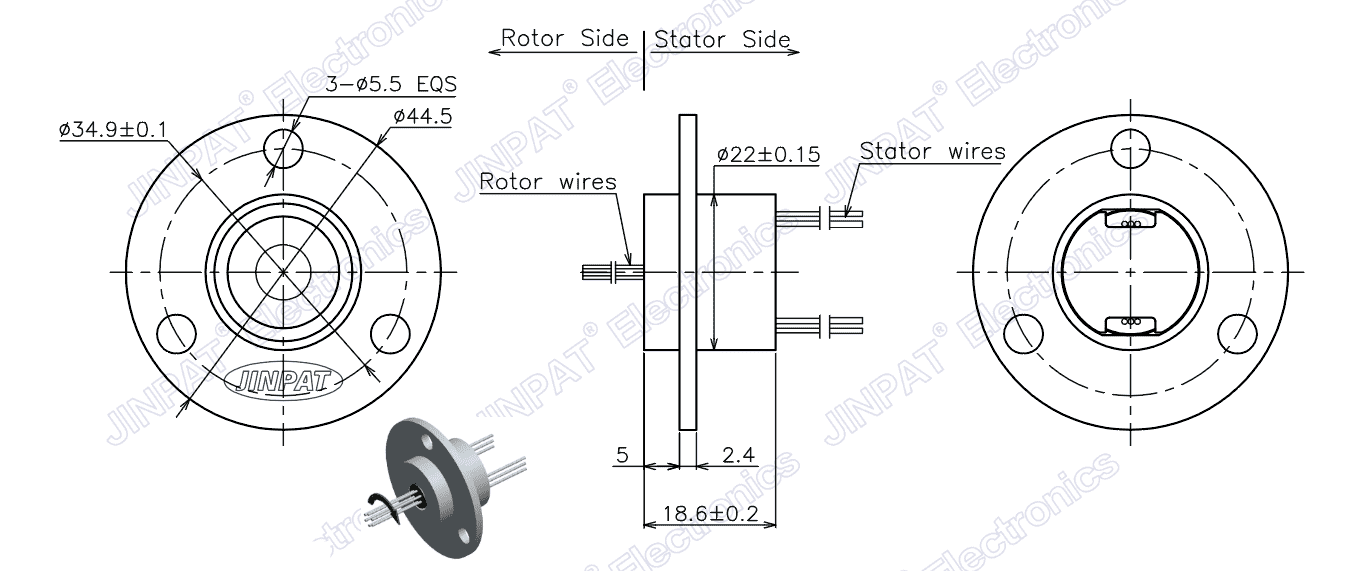

LPC-06/YB/YD/YJ/YT/YU Capsule Slip Ring

Description:

This slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint.

The LPC-06A capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-06A provides smoother running, lower torque and lower electrical noise than similar slip rings. It is available in 6, 12, 18, 24, 36 to 125 circuit models.

Features

◆ 2 amps per circuit , 240 VAC/VDC

◆ Gold-Gold contacts ensure long life time

◆ Compatible with data bus protocols

◆ Sealed units are available

◆ Flexible, color-coded, silver-plated lead wires

◆ Transferring analog and digital signals

◆ Structural flange on the housing

◆ Also available at 5A and 10A power rings combined with 2 amps rings.

Advantages

◆ Low torque minimizes system torque budget

◆ Compact package.

◆ Smooth running

◆ Low electrical noise

◆ Prompt shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability

◆ Addition of special components

◆ Working speed would be up to 300rpm or higher

◆ Transfer analoge and digital signals

Electronic & Electric			Mechanical
Circuits	Total	6 CKT	Working Speed	0~300rpm
	Detail	6x2A	Contact Material	Gold to Gold
Rating Voltage		0~240V AC/DC	Housing Material	Engineering plastics
Dielectric Strength		≥500VAC@50Hz(P) ≥100VAC@50Hz(S)	Lead Wire Length	Stator:250±5mm Rotor:250±5mm
Insulation Resistance		≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)	Dynamic Resistance Fluctuation Value	≤35mΩ
Environment			Remarks
Working Temperature		-20°C~+60°C	Application	/
Working Humidity		≤60%RH	Other	/
IP		IP40	Note: "P" stands for power, "S" stands for signal.
