LPM-18 Miniature Capsule Slip Rings

copy Link

Facebook

Twitter

Number of Circuits 18CKT

Insulation Resistance ≥50MΩ200VDC(P) ≥10MΩ100VDC(S)

Voltage 110VAC/DC

Consult immediately

Model ListInstallationReview(0)

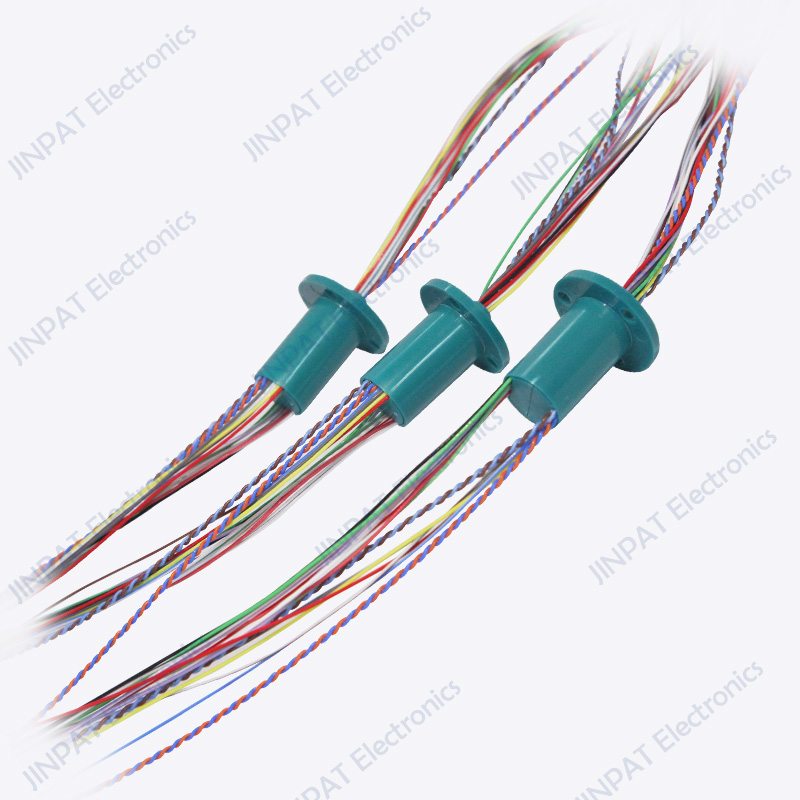

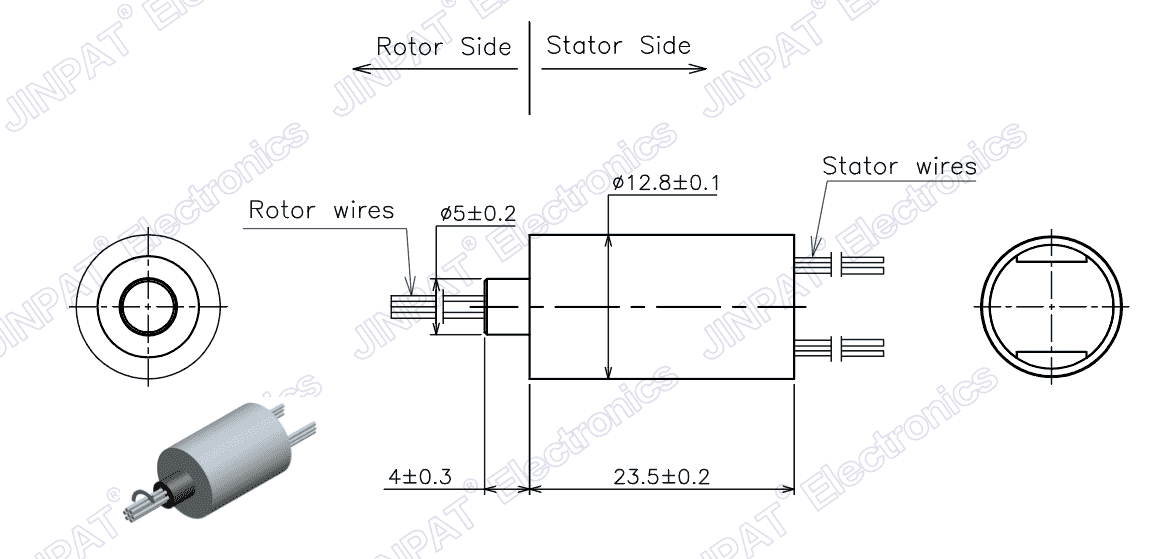

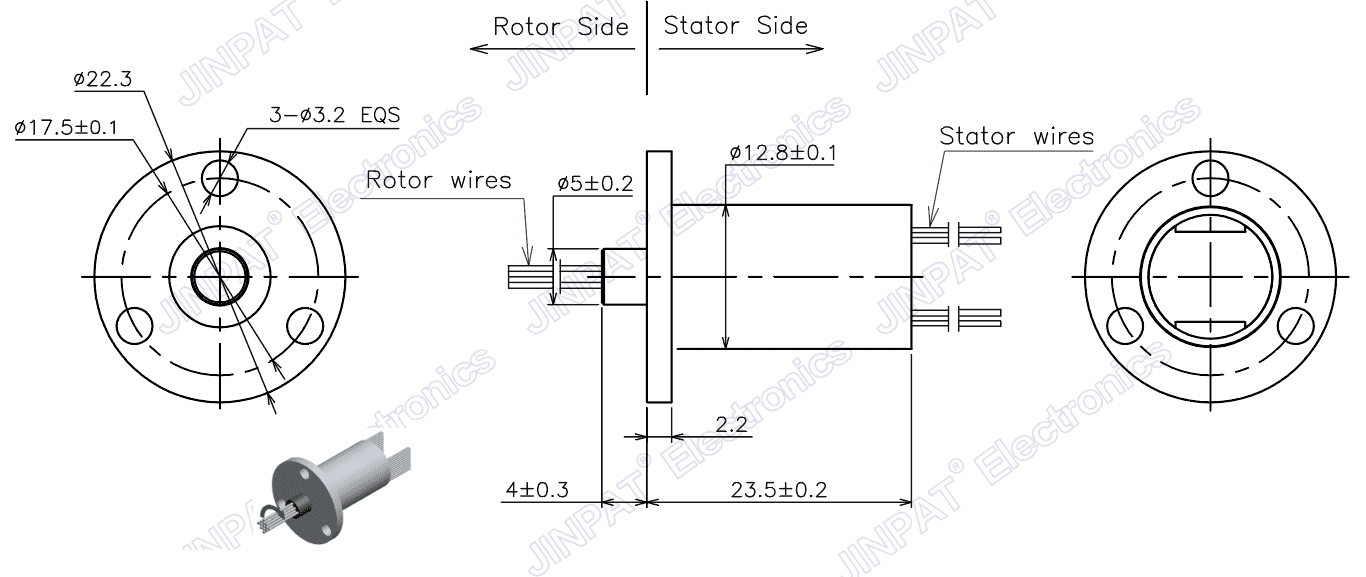

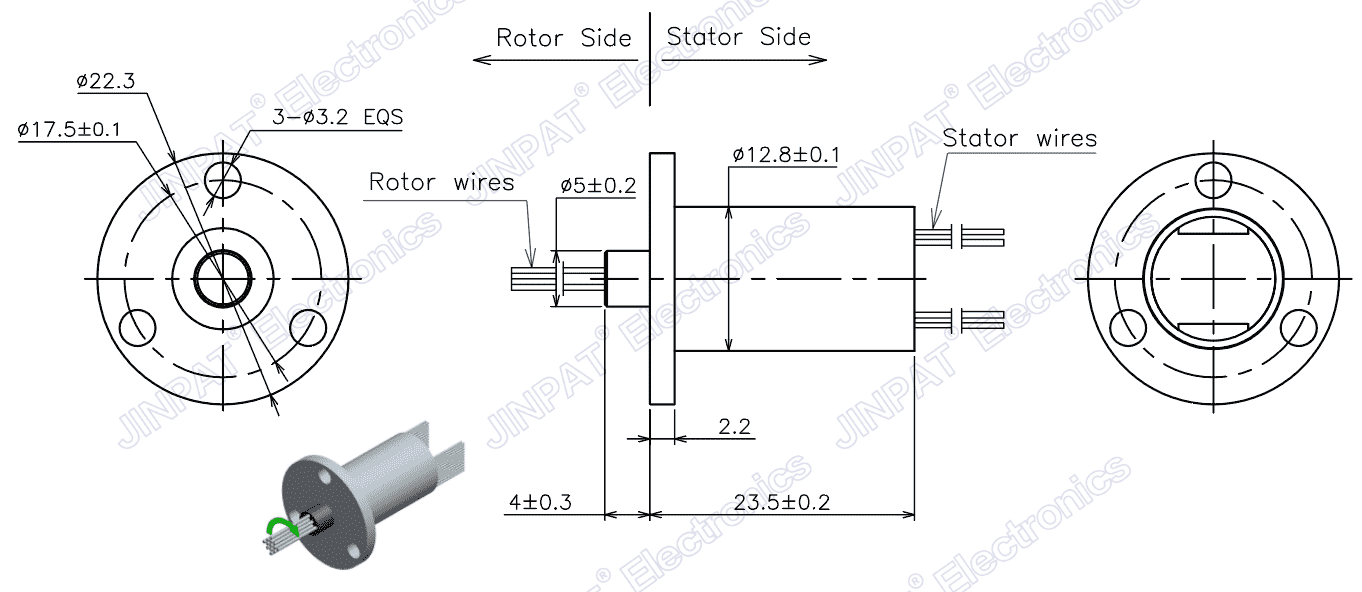

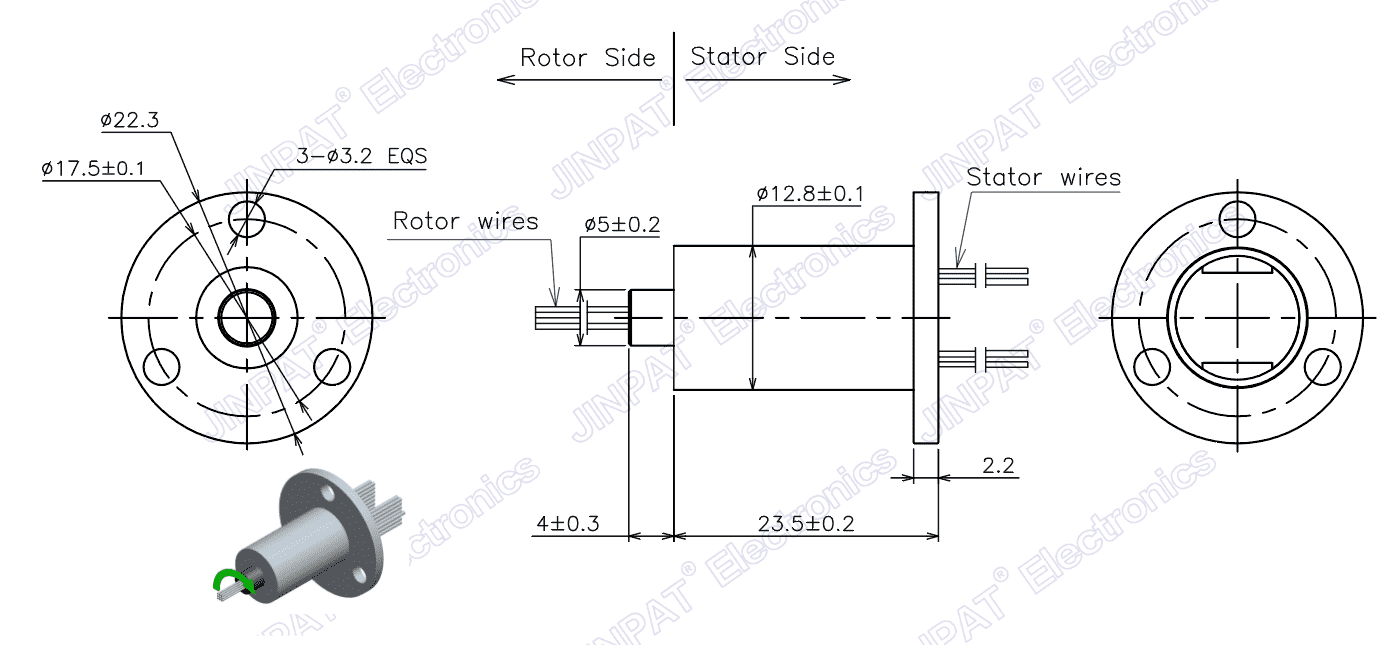

LPM-18/YB/YD/YJ/YU Miniature Capsule Slip Rings

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPM-18A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. The use of gold on gold contacts assures long life, low noise, minimal interference between circuits, and low contact resistance.

Electronic & Electruc			Mechanical
Circuits	Total	18CKT	Working Speed	0~300rpm
	Detail	18X1A(You can go through 2A under certain circumstances )	Contact Material	Gold to Gold
Rating Voltage		110VAC/DC	Housing Material	Engineering plastics
Dielectric Strength		≥200VAC@50Hz(P) ≥100VAC@50Hz(S)	Lead Wire Length	Stator: 250士5mm Rotor: 250士5mm
Insulation Resistance		≥500MΩ@200VDC(P) ≥10MΩ@100VDC(S)	Dynamic Resistance Fluctuation Balue	≤35mΩ
35mEnvironment			Remarks
Working Temperature		-20°C~+60°	Application	/
Working Humidity		≤60%RH	Other	/
IP		IP40	Note:"P" stands dor power, "S" stands for signal
