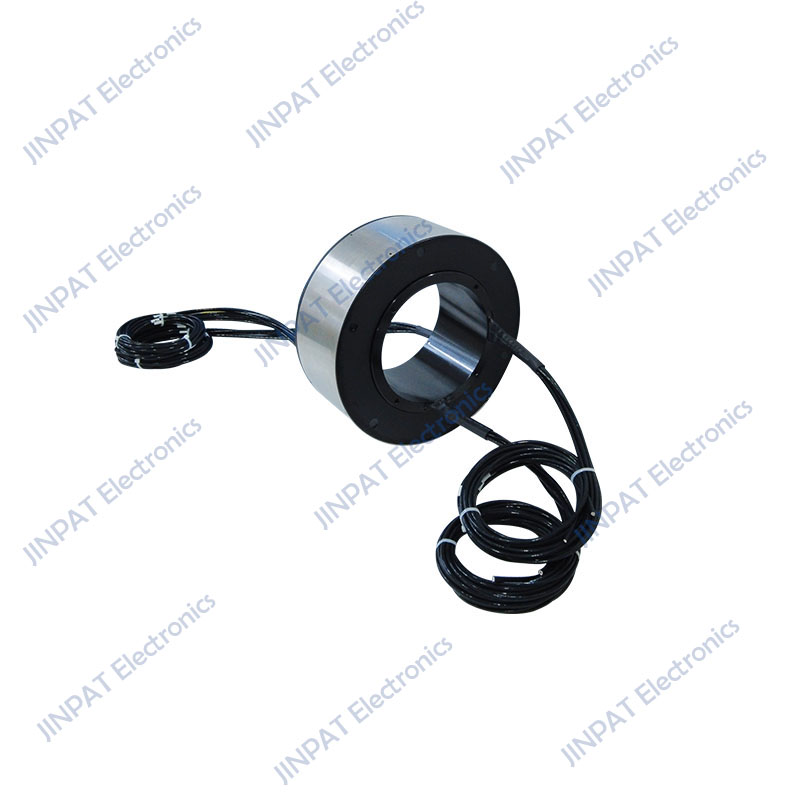

Improving Robotics Motion Control With Through Hole Slip Rings

Through hole slip rings for industrial robotics systems are designed to provide reliable power and signal transmission during continuous rotation. Modern robotic equipment requires stable electrical connectivity while maintaining flexible movement. The through bore structure allows shafts, pneumatic lines, or cable bundles to pass through the center, making it ideal for robotic arms, automated assembly systems, and rotating platforms.

Industrial robots often operate in high-precision environments where consistent performance is critical. Through hole slip rings support uninterrupted rotation without twisting cables, reducing mechanical stress and improving system reliability. Their compact structure allows easy integration into robotic joints or rotating bases. By combining multiple circuits within a single unit, these slip rings enable simultaneous transmission of power, control signals, and communication data.

European manufacturing environments place strong emphasis on precision and long-term durability. Through hole slip rings meet these requirements by offering stable contact, low electrical noise, and customizable configurations. They help improve robotic system efficiency while reducing maintenance frequency. This makes them suitable for advanced automation applications across automotive, electronics, and machinery industries.

Technical Specifications

Through hole slip rings used in robotics typically feature customizable bore diameters to accommodate drive shafts or cable routing. Conductive rings are manufactured from high-conductivity alloys to ensure stable power transmission. Brush materials are selected to minimize wear and maintain consistent electrical contact during rotation.

Electrical channels may include power circuits for motors and actuators, as well as signal lines for sensors and communication modules. Shielded circuits can be integrated to maintain signal integrity in environments with electrical noise. Housing materials such as aluminum alloy provide a balance between durability and lightweight construction.

Operating speeds are optimized for low to medium rotation, which is typical for robotic joints. Precision bearings ensure smooth rotation and reduce vibration. Protection levels can be customized depending on installation requirements, including options for dust or moisture resistance. Flexible lead wires or connectors simplify integration into robotic assemblies.

Optional features include high-speed data channels, temperature-resistant materials, and customized mounting structures. These features allow the slip ring to match specific robotic system designs. The modular configuration also supports future expansion if additional circuits are required.

Key Benefits

Through hole slip rings improve cable management in robotic systems. By routing cables through the central bore, engineers can simplify mechanical design and reduce cable twisting. This enhances reliability and extends equipment lifespan. Stable electrical contact ensures consistent signal transmission, which is essential for precise robotic movement.

Another key benefit is flexibility. Multiple circuits allow simultaneous transmission of power, signals, and data. This reduces the need for separate components and simplifies system architecture. Low electrical noise improves communication accuracy between sensors and controllers.

Durability is also an important advantage. Wear-resistant brush materials extend service life and reduce maintenance. Lightweight housing minimizes load on robotic joints, improving motion efficiency. Customizable configurations allow adaptation to various robotic applications.

Through hole slip rings also support compact system design. By integrating multiple channels into a single unit, they reduce installation space. This is particularly valuable for robotic arms and automated platforms with limited internal space. Overall, these benefits contribute to improved automation performance.

Applications

Through hole slip rings are widely used in industrial robotic arms. They enable continuous rotation of joints while maintaining stable electrical connections. This improves flexibility and allows robots to perform complex movements. Automated assembly lines also use through hole slip rings to support rotating workstations.

In packaging and material handling systems, robots often require continuous rotation for sorting and positioning tasks. Through hole slip rings ensure reliable power and signal transmission. This improves operational efficiency and reduces downtime. Inspection robots equipped with cameras and sensors also benefit from stable transmission.

Additional applications include welding robots, palletizing systems, and collaborative robots. In these systems, precise motion and consistent communication are essential. Through hole slip rings provide reliable performance and support advanced automation. European manufacturing facilities use these solutions to enhance productivity and system reliability.

Why It Works

Through hole slip rings achieve reliable performance through optimized mechanical and electrical design. Precision bearings ensure smooth rotation and reduce vibration. This maintains stable brush contact and prevents signal interruption. Conductive rings with large contact surfaces reduce resistance and improve power transmission.

High-quality insulation materials ensure safe operation between circuits. Shielded channels protect sensitive signals from interference. The central bore design simplifies cable routing and improves mechanical balance. This reduces strain on robotic joints and enhances durability.

Wear-resistant brush materials maintain consistent contact pressure. This reduces electrical noise and extends service life. Lightweight housing materials minimize rotational inertia, improving motion control. Together, these features enable stable performance in demanding robotic applications.

By combining flexible configuration, reliable electrical transmission, and durable construction, through hole slip rings provide an effective solution for industrial robotics systems. They support continuous rotation, precise motion control, and long-term operational stability.
