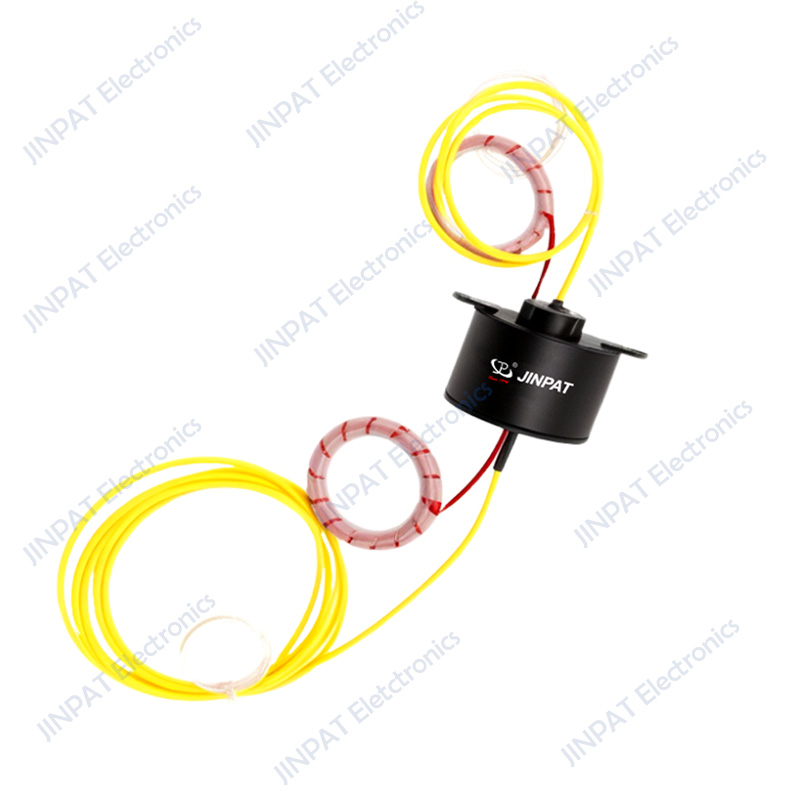

Through Bore Slip Ring

Number of Circuits 06/12/18/24
Current 5A(Signal)/10A/15A
Insulation Resistance ≥500MΩ@500VDC
Wire Length rotor/stator:300mm
Voltage 240VAC/DC
Consult immediately
Parameters
Number of Circuits
06/12/18/24
Current
5A(Signal)/10A/15A
Insulation Resistance
≥500MΩ@500VDC
Wire Length
rotor/stator:300mm
Voltage
240VAC/DC
I know
Model ListInstallationReview(0)

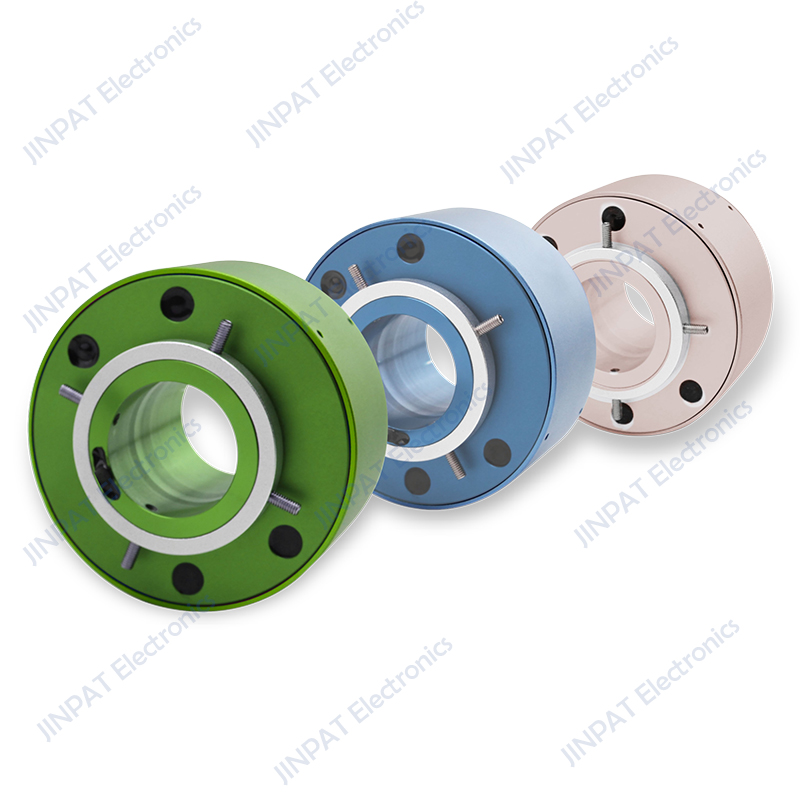

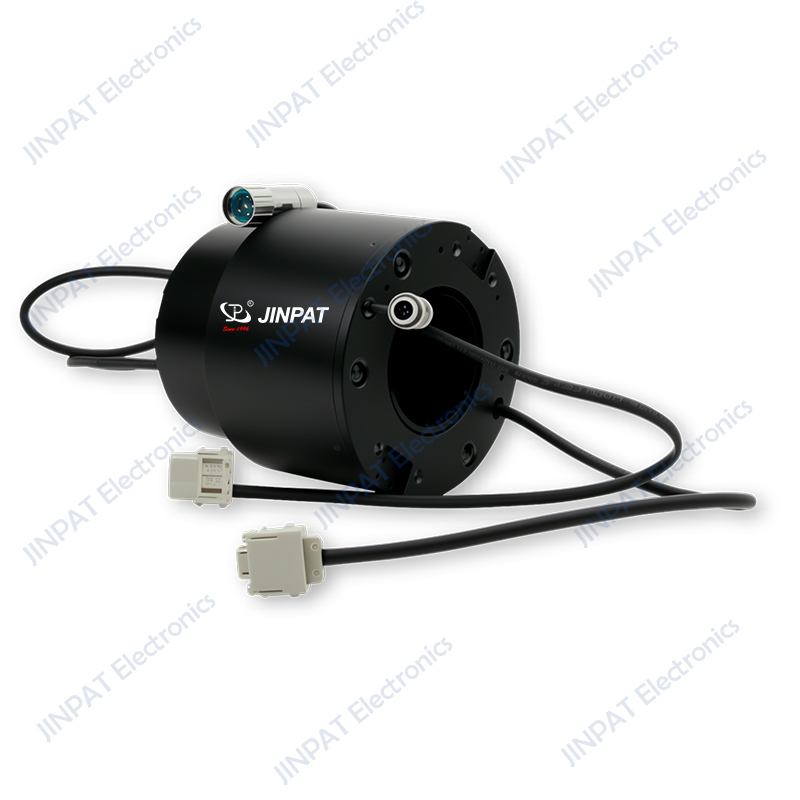

LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.


Features:

◎Transmit analog and digital signal

◎The power and signal are mixed transmitted, and the signal categories are as follows:

◎Ethernet: Rate (10Mbps/100Mbps/1000Mbps)

◎Industrial Ethernet:   EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.

◎HD video: SDI, LVDS, etc.

◎Serial communication: RS232, RS485, RS422, etc.

◎Universal Serial Bus: USB2.0

◎Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.

◎Sensor signal: thermal resistance, thermocouple, strain gauge, etc.

◎Long service life, maintenance-free

◎Easy to install


Main Applications:

◎Industrial automation equipment/Medical equipment/Wind power equipment/Test equipment/Exhibition / display equipment/Robots/Turntable equipment/Amusement equipment/High-speed railway equipment/Packaging machinery/Ship offshore equipment/Construction machinery




LPT Through-bore Slip Rings
Model

ID

(mm)

OD

(mm)

VoltageCurrentLength(mm)

Rotating

Speed

(rmp)

Aluminum

Ring

Diameter

(mm

Rotor

Exposed

Length

(L1)

Width of

Anti

-rotation

Tab(A)

Groove

Width

of Anti-

rotation

Tab(B)

Height

of Anti-

rotation

Tab(H)

Thickness

of Anti

-rotation

Tab(L2)

Details

6

Circuits

12

Circuits

18

Circuits

24

Circuits

LPT012Φ12.7
Φ53240VAC/DC

5A/

Signal

Φ56

5A/

Signal

3447.861.675.4
10A3753.870.687.4
LPT025Φ25.4Φ86240VAC/DC

5A/

Signal

380VAC/DC

10A

47.570.994.3117.7

15A

52.380.5108.7

136.9

LPT038Φ38.1Φ99240VAC/DC

5A/

Signal

380VAC/DC10A47.871.895.8119.8
15A52.681.4110.2139
LPT050Φ50Φ119240VAC/DC

5A/

Signal

10A54.278.2102.2126.2
15A5987.8116.6145.4
LPT060Φ60Φ135240VAC/DC

5A/

Signal

10A56.778.9101.1123.3
15A61.588.5115.5142.5
LPT070
Φ70Φ135240VAC/DC

5A/

Signal

52.570.588.5106.5300Φ95
10A56.778.9101.1123.3
15A61.588.5115.5142.5
LPT080Φ80Φ160240VAC/DC

5A/

Signal

10A64.691.6118.6

145.6

15A67.697.6127.6157.6
LPT096Φ96Φ185240VAC/DC

5A/

Signal

10A6996123150
15A72102132162
LPT120Φ120Φ207240VAC/DC

5A/

Signal

10A81108135150
15A84114144162
LPT150Φ150Φ250240VAC/DC

5A/

Signal

10A98131164197
15A101137173209
LPT180Φ180Φ298240VAC/DC

5A/

Signal

10A104137170203
15A107143179215





LPT   Long Life Slip Rings
ModelID(mm)OD(mm)Length(mm)VoltageCurrent

Rotating

Speed(rmp)

Application

Lifespan

(turns)

Details
LPT009-0204-05SΦ9.55Φ3526.6240VAC/DC

2x4A+5

*common signal

300

or higher

LPT009-1802-HSΦ9.5Φ31.843240V2A/Signal

500

or higher

Turntable Equipment50millions详情.png
LPT010-0602Φ10Φ3624.6240V2A/Signal

300

or higher

Radar Equipment50millions详情.png
LPT012A-1202Φ12.7Φ3534.4240VAC/DC2A/Signal

300

or higher

CableReel Equipment50millions详情.png
LPT012B-0602Φ12.7Φ35.129.6240VAC/DC2A/Signal

300

or higher

Test Equipment50millions详情.png
LPT012B-0602-HS-HTΦ12.7Φ35.129.6240VAC/DC2A/Signal

2000

or higher

High-Speed Railway

Equipment

LPT012-3002-HSΦ12.7Φ3666240V2A/Signal

500

or higher

Turntable Equipment50millions详情.png
LPT032-0802-HS-HTΦ32Φ6141.9220V2A/Signal400

High-Speed Railway

Equipment

SPT050-104-0610Φ50Φ10458.8500V10A400Packaging Equipment50millions详情.png
SPT050-104-1210Φ50Φ10482.8500V10A400Packaging Equipment50millions详情.png
SPT050-104-1810Φ50Φ104106.8500V10A400Packaging Equipment50millions详情.png
SPT050-104-2410Φ50Φ104130.8500V10A400Packaging Equipment50millions详情.png
LPT000-0508-E2-01A0
Φ130108.824V/DC
5x8A+1x100M Ethernet300
//详情.png




LPT Through-bore Slip Rings Installation Guide


1.Arrange wires of the rotor side and the stator side before installation. Stabilize the slip ring on the rotating shaft. Adjust the position of the shaft and the mounting hole and use 4 screws on the rotor side to fasten the components. Ensure the concentricity between the shaft and the slip ring before fixing the screws,

2.Insert the poke rod in the U slot of the anti-rotation tab. Meanwhile, arrange the wires to avoid twining with the rotor.

3.Slip rings are precise electronic components. Take protection measures in case of harsh environment or apply slip rings with higher protection level.





LPT Through-bore Slip Rings Precautions


1.The slip ring cannot bear the weight of its connected equipment. Also, wires should be free from extra pull and weight.

2.Keep wires intact during installation to avoid any poor performances due to damage of the wire insulating layers.

3.Adopt flexible connection instead of rigid connection between the rotor side and the stator side to ensure longer life span of the slip ring.

4.Stabilize the screws with locking measures to avoid loosening and dropping due to vibrations and shocks during operation.
