Integrated Slip Ring Solutions for EO/IR and Optical Stabilization Systems

Why Stable Signal Transmission Matters in EO/IR Systems

Electro-optical and infrared (EO/IR) systems are widely used in surveillance, defense, border security, marine monitoring, and airborne observation platforms. These systems rely on continuous movement and precise stabilization to capture clear, real-time images under dynamic conditions.

Whether mounted on unmanned systems, monitoring towers, or moving vehicles, EO/IR platforms often require smooth 360° rotation while maintaining stable transmission of power, video, and communication signals.

This is where a reliable EO slip ring becomes essential.

Poor transmission performance may lead to image interruption, unstable signals, delayed response, or reduced monitoring accuracy—especially in demanding surveillance environments.

Key Challenges in EO/IR and Optical Stabilization Systems

Continuous Rotation with Signal Stability

EO/IR systems usually involve continuous pan and tilt movement.

During operation, the rotating system must maintain uninterrupted transmission of:

• High-definition video signals

• Power supply

• Ethernet communication

• Control signals

A low-quality rotary connection may result in signal loss or unstable image transmission.

High-Speed Data Transmission

Modern optical stabilization systems often process large volumes of image data in real time.

Applications such as:

• Thermal imaging

• Night vision monitoring

• HD optical tracking

• Long-range surveillance

require stable, low-latency communication between rotating and stationary components.

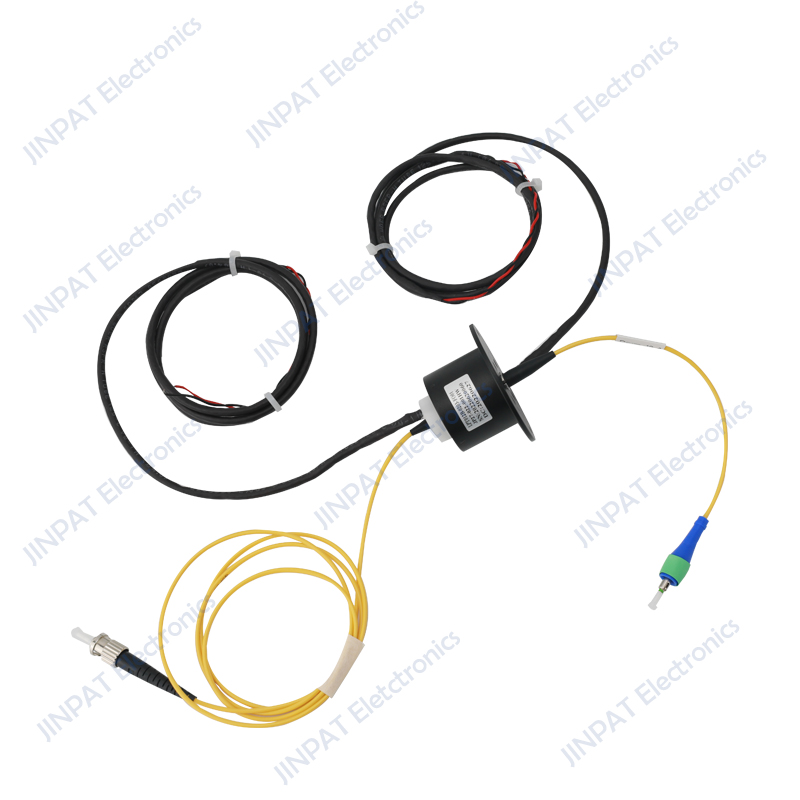

In many advanced systems, fiber optic slip rings are increasingly used to improve transmission performance.

Compact Installation Space

EO/IR equipment often has strict size limitations.

Many systems require compact rotary solutions that fit inside limited spaces while supporting multiple transmission channels.

For these applications, compact integrated slip rings are often preferred.

What to Consider When Choosing an EO Slip Ring

1. Signal Transmission Requirements

Before selecting a slip ring, engineers should identify all signal types required by the system.

Typical requirements may include:

• Video signals

• Ethernet communication

• Electrical power

• Fiber optic transmission

Integrated transmission designs help reduce cable complexity and improve system reliability.

2. Rotation Accuracy and Stability

Optical stabilization systems require extremely smooth movement.

Even minor signal interruptions or unstable contact performance may affect:

• Image quality

• Object tracking accuracy

• Stabilization performance

Selecting a high-precision optical stabilization slip ring helps maintain stable operation.

3. Environmental Conditions

EO/IR systems are often deployed outdoors or in demanding environments.

Slip rings may need to withstand:

• Dust exposure

• Humidity

• Temperature changes

• Continuous vibration

Reliable environmental protection is important for long-term performance.

4. Compact and Lightweight Design

In airborne or mobile applications, space and weight are critical considerations.

Compact slip ring solutions can help optimize system structure without sacrificing transmission capability.

Why Hybrid Slip Rings Are Increasingly Used in EO/IR Systems

Modern surveillance systems require more than simple electrical transmission.

Many applications now combine:

• High-definition video

• Optical signals

• Ethernet communication

• Electrical power

Instead of using multiple independent systems, integrated slip ring solutions simplify installation and improve overall system efficiency.

This is particularly valuable in advanced surveillance and stabilization applications where space is limited and performance requirements are high.

Final Thoughts

Reliable signal transmission is a critical part of EO/IR and optical stabilization system performance.

By selecting the right EO slip ring, engineers can improve image stability, reduce maintenance, and ensure long-term operational reliability.

For complex applications involving video, optical, and electrical transmission, customized slip ring solutions may provide better flexibility and system integration.
