LPPL06-12A-EN Standard Pneumatic Rotary Unions

Number of Circuits /
Optional Lnner diameter, Outer diameter / Number of circuits / Current & Voltage / Length of wire, material and color of connecting terminal / Shell / Protection grade / Signal and power supply can be transmit
Consult immediately
Parameters
Number of Circuits
/
Optional
Lnner diameter, Outer diameter / Number of circuits / Current & Voltage / Length of wire, material and color of connecting terminal / Shell / Protection grade / Signal and power supply can be transmit
I know
Model ListInstallationReview(0)

Description

A pneumatic slip ring is a mechanism used to transfer fluid (under pressure or vacuum) from a stationary inlet to a rotating outlet, preserving and isolating the fluid connection.

Pneumatic slip rings are engineered to endure a wide range of temperatures and pressures for a variety of conditions and environments. In addition, rotary unions may integrate multiple passages and handle different types of fluid simultaneously.


Rotary Unions & Joints Spec.

Mechanical Data

Max. Operating Pressure

Positive Pressure 1Mpa,

Vacuum -1.5kPa

Working Speed

0~100rpm

Medium Type

Air

Working Temp.

-20°C~+60°C

Passages(Gas/Flow)

12 in 12 out

Work Humidity

≤60%RH

Pipe Size

∅4mm pipe, M5 port

Housing Material

Aluminum Alloy

Torque

≤4.0 N.m

IP Grade

IP51

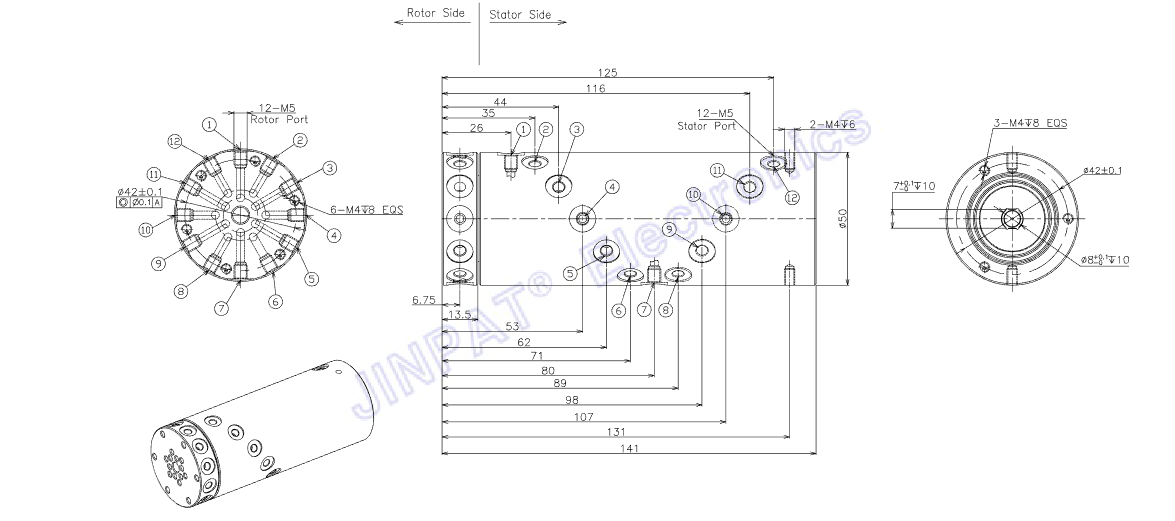

LPPL06-12A-EN-Outline Drawing
