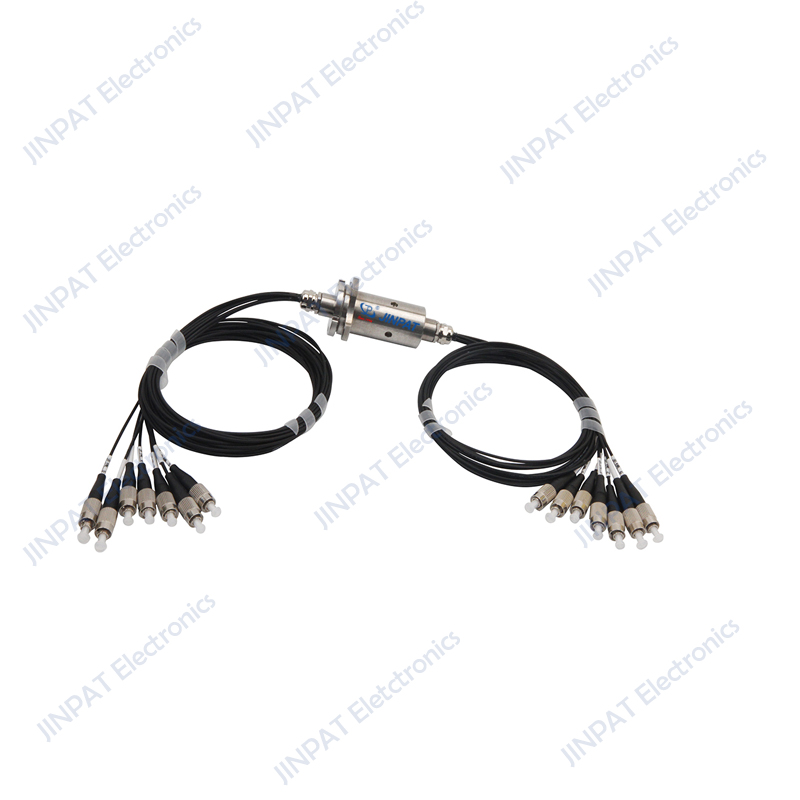

Fiber Optic Rotary Joints
Fiber Optic Rotary Joints (FORJs) are to optical signals what electrical slip rings are to electrical signals, a means to pass signals across rotating interfaces, particularly when transmitting large amounts of data. FORJs maintain the intrinsic advantages of fiber end to end. JINPAT has been producing Fiber Optic Rotary Joints for over Twenty-five years.
Single or Multi-Channel
FORJs are available in single and multi-channel options. The most cost and size efficient options are the single and dual channel designs. If more than two fibers are present in a system, multiplexing solutions are available to combine multiple channels onto one or two fibers to allow the use of a one or two channel FORJ.
LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.
| Specifications | |||
| Fiber types | SM or MM | Connector types | FC/SC/ST/LC(PC or APC) |
| Channel number | 1 | Estimated life cycle | ＞200 million revolutions |
| Wavelength range | SM:1270-1650nm MM:650-1300nm | Vibration | MIL-STD-167-1A |
| Insertion loss | ＜2dB | Mechanical shock | MIL-STD-810G |
| Insertion loss ripple | ＜0.5dB | IP rating | IP65 or IP68 |
| Return loss | ≥40dB | Max Optical power | 23dBm |
| Storage temperature | -55~+85℃ | Maximum speed | 2000rpm |
| Weight, approx | 10g（No tail cable andconnection included） | Jacket types | 0.9/2/3mm(Kevlar/PVC or Armor) |
| Package style | Pigtails on both ends | Working temperature | -45～+80℃ |
