LPS-03 Separate Slip Rings

Number of Circuits 3
Current 1-3A
Voltage 240v
Optional Speed / circuit number / current / wire length
Consult immediately
Parameters
Number of Circuits
3
Current
1-3A
Voltage
240v
Optional
Speed / circuit number / current / wire length
I know
Model ListInstallationReview(0)

Description:

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanically capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

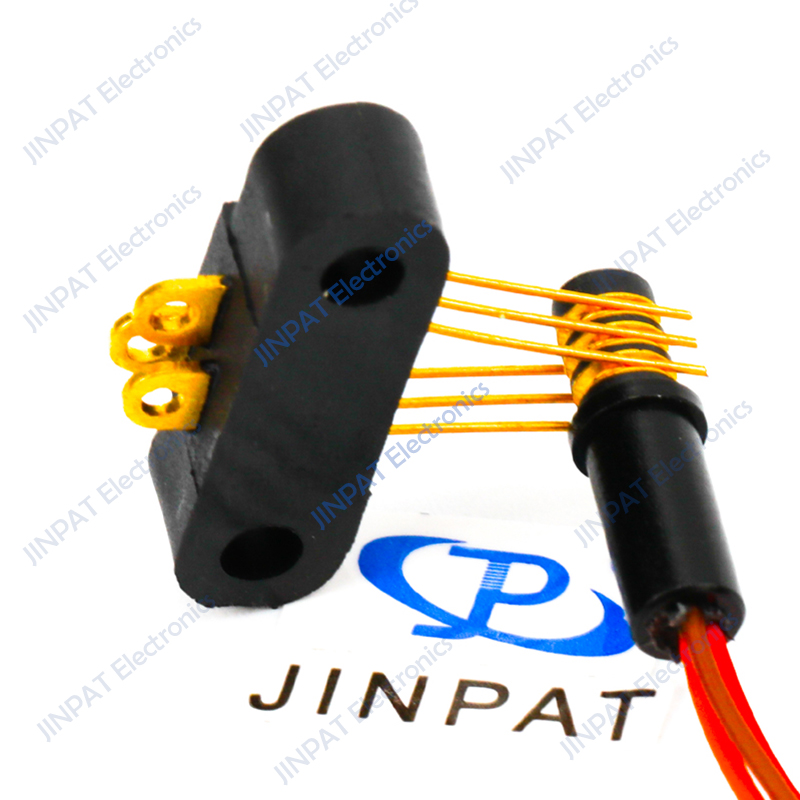

The LPS-03 separate slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPS-03A provides smoother running, lower torque and lower electrical noise than competitive slip rings.


Features

◆ 3 circuits models

◆ Speed up to 300 rpm continuous

◆ Gold-Gold contacts

◆ 250mm standard lead lengths

◆ Compatible with data bus protocols

◆ Sealed units are available

◆ Flexible, color-coded, silver-plated, lead wires

◆ Precision ball bearings meet or exceed life requirements for most commercial applications


Advantage

◆ Low torque minimizes system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth running

◆ Low electrical noise

◆ Quick shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability



Electronic & Electric

Mechanical

Circuits

Total

3 CKT

Working Speed

0~100rpm

Detail

3x2A

Contact Material

Gold to Gold

Rating Voltage

240V AC/DC

Housing Material

Precious Metal

Dielectric Strength

≥500VAC@50Hz(P) ≥100VAC@50Hz(S)

Lead Wire Length

Rotor:250±5mm

Stator:Gold plated pin

Insulation Resistance

≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Lead Wire Size

AWG32# silver plated

copper UL®, Teflon

Environment

Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

IP40

Note: "P" stands for power, "S" stands for signal.
