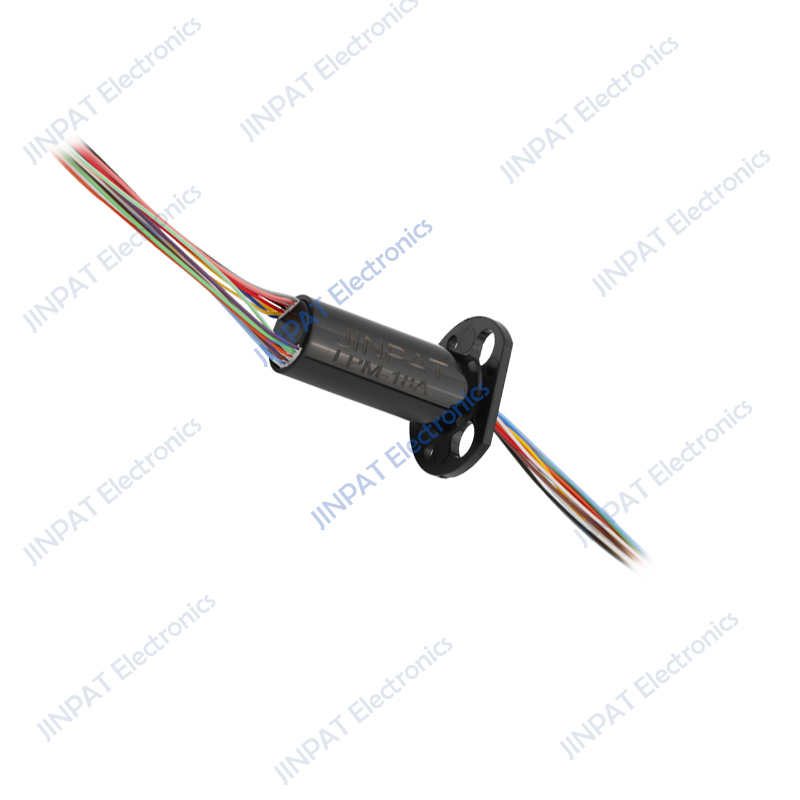

LPM-18 Miniature Capsule Slip Rings

Number of Circuits 18CKT
Insulation Resistance ≥50MΩ200VDC(P) ≥10MΩ100VDC(S)
Voltage 110VAC/DC
Consult immediately
Model ListInstallationReview(0)

LPM-18/YB/YD/YJ/YU   Miniature Capsule Slip Rings



This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. Its the key apparatus of   various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPM-18A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. The use of gold on gold contacts assures long life, low noise, minimal interference between circuits, and low contact resistance.



Electronic & ElectrucMechanical
CircuitsTotal18CKTWorking Speed0~300rpm
Detail

18X1A(You can go through 2A

under certain circumstances )

Contact MaterialGold to Gold
Rating Voltage110VAC/DCHousing MaterialEngineering plastics
Dielectric Strength

200VAC@50Hz(P)

≥100VAC@50Hz(S)

Lead Wire Length

Stator: 250士5mm

Rotor:   250士5mm

Insulation Resistance

≥500MΩ@200VDC(P)

≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Balue

≤35mΩ

35mEnvironmentRemarks
Working Temperature-20°C~+60°Application/
Working Humidity

≤60%RH

Other/
IP
IP40Note:"P" stands dor power, "S" stands for signal


LPM-18 -Outline Drawing




LPM-18YB -Outline Drawing



LPM-18YD -Outline Drawing


LPM-18YJ -Outline Drawing



LPM-18YU -Outline Drawing
