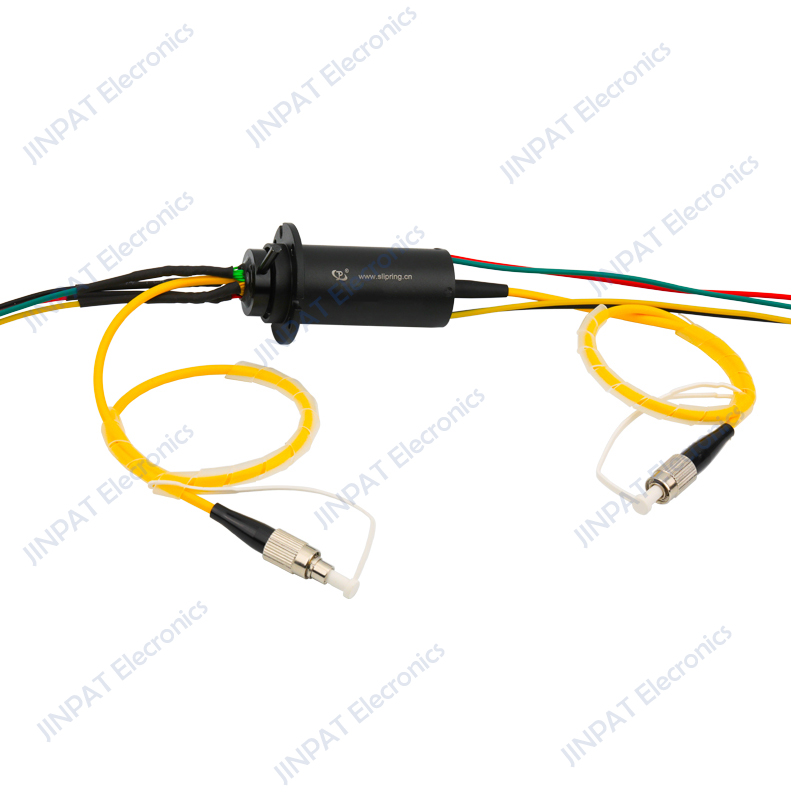

LPC-1F2402 has 1 optical channel and 24 power channels. It is a slip ring model that can function smoothly in harsh environments with no contact, no friction and therefore attain a super long product life. Hybrid transmission of various signals(video, serial data and network data，etc.) Adopting fiber optics as medium allows no leakage and interference-free reliable transmission up to a hundred miles. The slip ring is light and compact, and is able to integrate with electrical slip rings. System upgrade is very convenient and flexible.
Electronic & Electric
Dynamic Resistance Fluctuation Value
Gold to Gold
Lead Wire Length
|IP||IP40||Note: "P" stands for power, "S" stands for signal.|
|Optical fiber type||Single mode（9/125um）||The bending radius||50mm|
|Working wavelength||1310/1550nm||Jacket types||⌀3（TPU）|
|Insertion Loss||＜2dB||Connect Model||/|
|Insertion Loss-WOW||＜0.5dB||Optical fiber Length|
