LPC-1F1202 fiber optic slip ring

Wavelength range 650-1650nm ( customized)
Insertion loss <2db
Insertion loss ripple <2dB
Return Loss >40
Consult immediately
Parameters
Wavelength range
650-1650nm ( customized)
Insertion loss
<2db
Insertion loss ripple
<2dB
Return Loss
>40
I know
Model ListInstallationReview(0)

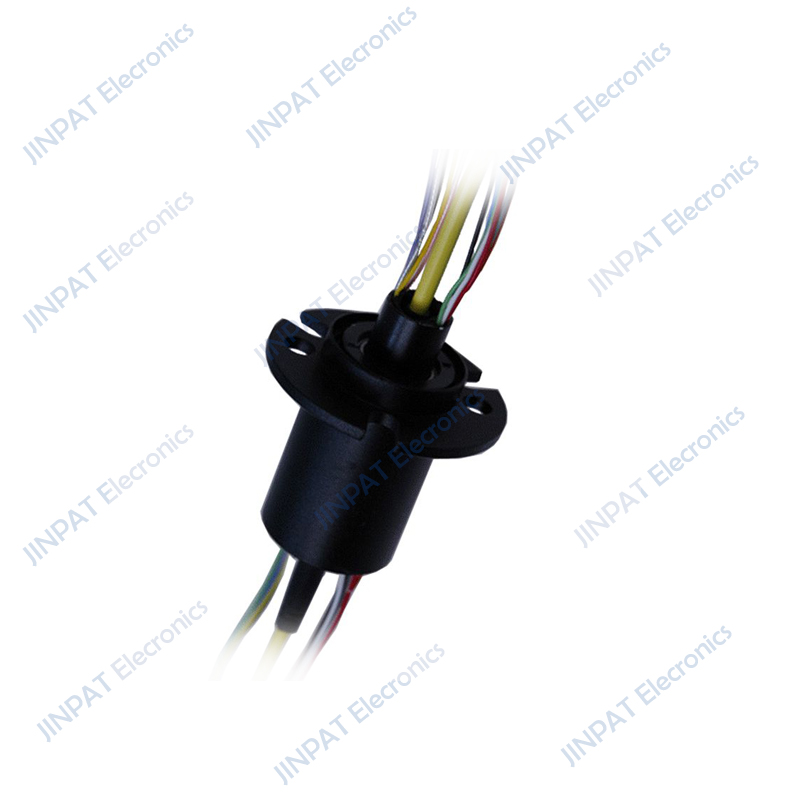

LPC-1F1202 has 1 optical channel and 12 power channels. It is a slip ring model that can function smoothly in harsh environments with no contact, no friction and therefore attain a super long product life. Hybrid transmission of various signals(video, serial data and network data,etc.) Adopting fiber optics as medium allows no leakage and interference-free reliable transmission up to a hundred miles. The slip ring is light and compact, and is able to integrate with electrical slip rings. System upgrade is very convenient and flexible.




LPC-1F1202-fiber optic rotary joints.jpg




Electronic & Electric

Mechanical

Circuits

Total

12CKT

Working Speed


0~300rpm

Detail

12x2A

Dynamic Resistance Fluctuation Value

≤35MΩ

Rating Voltage

0~240V AC/DC

Contact Material

Gold to Gold

Dielectric Strength

500VAC@50Hz(P) ≥100VAC@50Hz(S)

Housing Material

Aluminum Alloy

Insulation Resistance

≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Lead Wire Length

Rotor:250+50/-0mm
Stator:250+50/-0mm

Environment

Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IPIP40Note: "P" stands for power, "S" stands for signal.
Coaxial Parameter
Optical fiber type
Single mode(9/125um)The bending radius50mm
Working wavelength1310/1550nmJacket types⌀3(TPU)
Insertion Loss<2.0dBConnect Model/
Insertion Loss-WOW<0.5dBOptical fiber Length

Rotor:250±500mm

Stator:250±500mm

Return loss

>40dB

Light power23dBm



Comment
