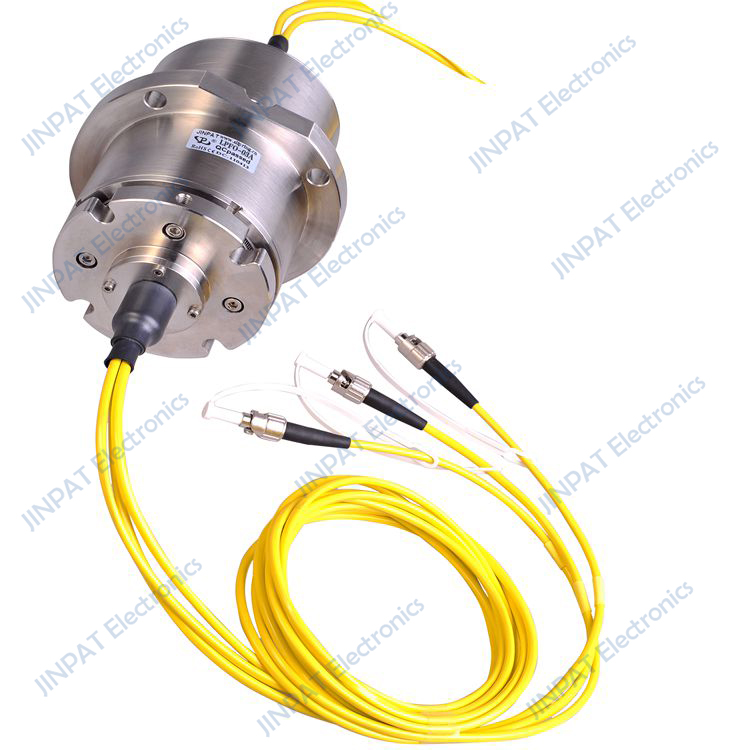

LPFO-03B fiber optic rotary joints

Number of Circuits 3
Wavelength range 850-1550
Insertion loss <5dB
Return Loss >45
Optional Fiber optic transmission type is optional,circuits of current and signal are optional.
Consult immediately
Model ListInstallationReview(0)

LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.









Specifications
Fiber typesSingle or MultimodeJacket types2.0mm(TPU or Kevlar)
Channel number3Connector typesFC/SC/ST/LC(PC or APC)
Wavelength range

SM:1310/1550nm

MM:850/1300nm

Estimated life cycle100 million revolutions
Insertion loss<5dBVibrationMIL-STD-167-1A
Insertion loss ripple<2dBMechanical shockMIL-STD-810G
Return loss

SM:≥45dB

MM:≥35dB

IP ratingIP65
Crosstalk≥50dBMax Optical power23dBm
Maximum speed200rpmPackage style/
Working temperature


-20~65℃

Weight, approx/
Storage temperature-25~+75℃Fiber tpes/
