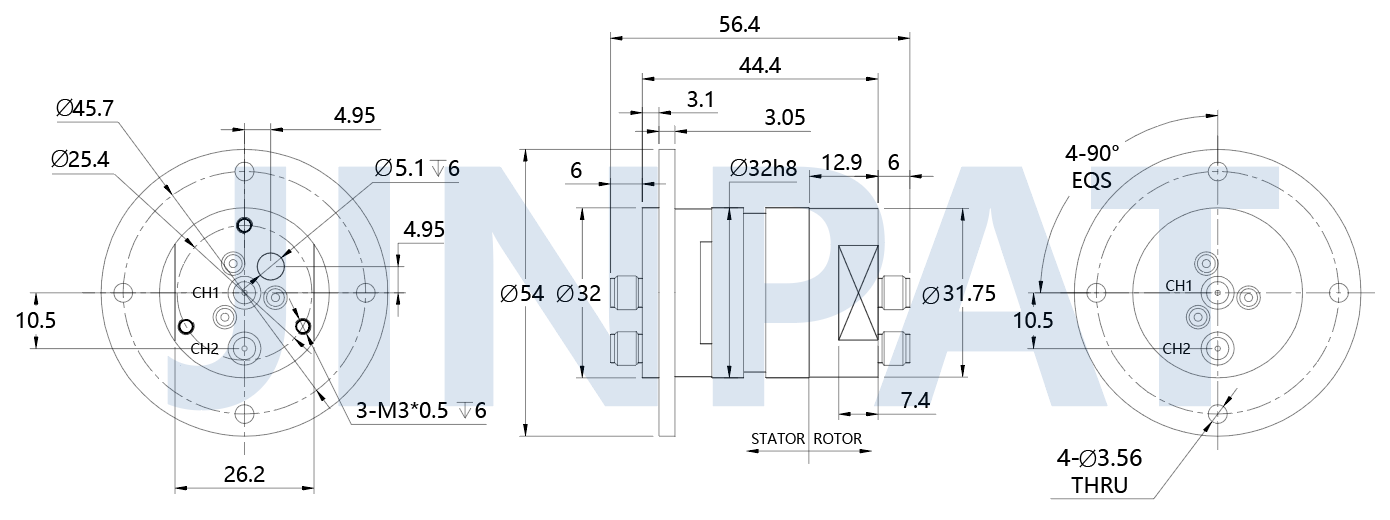

LPHF-02B Hign Frequency slip ring

Frequency range DC-18GHz/DC-4GHz
Optional Integrated transmission of high frequency signal and power signal or other signals
Consult immediately
Parameters
Frequency range
DC-18GHz/DC-4GHz
Optional
Integrated transmission of high frequency signal and power signal or other signals
I know
Model ListInstallationReview(0)

High frequency rotary joints include coaxial rotary joints, waveguide rotary joint, coaxial waveguide rotary joints.

They are also known as high frequency slip rings and radio frequency slip rings.

High frequency rotary joints are specially designed to transmit high speed serial digital signals like high definition signals,

RF signals and microwave signals.

The slip ring series support single channel and multi channels transmission of high frequency signals.

There are also hybrid solutions that support hybrid transmission of high frequency signals with control signals,

communication signals, power signals and fluid medium.









Specifications
ChannelCH1CH2Starting Torque0.05Nm@room temperature
Interface TpeSMA-F(50ohm)SMA-F(50ohm)Continuous Rotational Torque5Ncm@room temperature
TypeIIRotating Speed,Max.60rpm
Frequenc RangeDC-18GHzDC-18GHzLife Time,Min5 million Revolutions
Peak Power,Max.1000W1000WBody MaterialAluminum alloy
Average Power,Max.200W@1GHz10WCase surface finishChromate conversion coat
VSWR,Max

1.3@DC-8GHz

1.5@8-18GHz

1.2@DC-2GHz

1.5@2-4GHz

Weight,approx0.13kg
VSWR WOW0.050.2IP Protection LevelIP60
Insertion Loss,Max.

0.4dB@DC-4GHz

0.9@4-18GHz

1.2@DC-2GHz

1.5@2-4GHz

Operation Temperature-45~+80°C

Insertion Loss

WOW

0.05dB

0.15dB

Storage Temperature-55~+85°C

DC capability,max.

(one channel only)

0.5A,48VDC@full RF avg.power0.5A,24VDC @ full RF avg.power

Humidity

(Operation)

95%
Phase WOW1.0deg4.0degHumidity(Storage)95%
Isolation,min50dB
