Robot slip ring

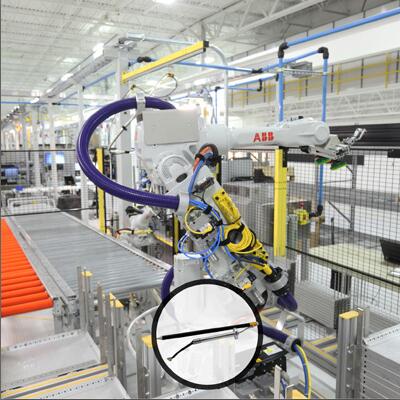

       Robot is a device of working automatically, which can not only accept human orders, but also operate programs made up previously and act according to principles and programs made by human intelligence. Its task is to assist or replace human work, such as in manufacturing, building industry or other dangerous areas. In the process of acting, slip rings are used commonly to help the robot complete its all kinds of manipulation.

     For different application, JINPAT has designed exclusively slip rings for robot use. It can achieve 360° rotating transmission and integrate pneumatic hydraulic rotary joints to meet the needs of more challenges. Also, it can transmit large current, Ethernet, USB, RS, CANBUS, FireWire, servo-actuator, encoder, strain gauge, thermocouple, HDMI with a low friction force. Moreover, Slip rings of LPT series features a high temperature resistance (up to 220℃), long service life up to 100 million turns and optional current. Therefore, JINPAT slip ring, as the central component of the welding robot, with its low torque(≤1N.m), smooth running, high bandwidth transfer capability, is able to perform welding work with no angular limit resulting from wires wrapping. Also, no wear debris makes it free of maintenance. Capsule slip rings enjoy compact design with the outer diameter ranging from 5.5mm to 14mm. As to robot for sweeping used in household or office area, products of LPC series are applied perfectly to the kind of robots. Easy to install, the electrical connector can transmit electricity and signals without surge kind of interference or data package loss. Another point lies in its high precision and reliable performance. Besides, it has a long service life with no maintenance. To solve the problem of complicated structure of rotating joint and inconvenience of installation or maintenance, typical products of LPC, LPM, LPT and LPFO series have been certified by practical use and won many favorable feedbacks.

Features & Advantages

◆ Transmitting electricity and various kinds of signals

◆ Large current-carrying capacity

◆ High precision and reliable performance

◆ Low friction force, no wear debris

◆   Low starting torque (≤1N.m), low torque budget

◆   High temperature resistance (up to 220℃)

◆ Easy to install

◆ Long service life

◆ Maintenance free

Equipment	Part Number	Performance		Specs
		Circuits	Working Speed
Robot	LPMS-12A	12*0.5A	0~300 rpm

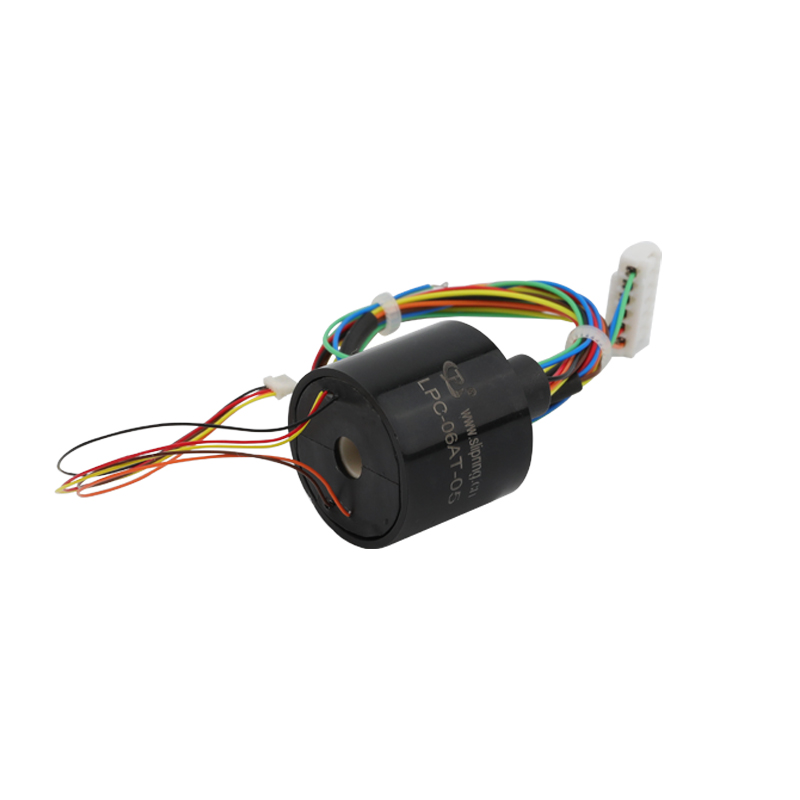

Floor Moppinmg Robot	LPC-06AT-05	5*1A	0~300 rpm
Manufacture Scanning Robot	LPM-06F	6*2A	0~300 rpm
Picking Robot	LPT045-U2-06S	1*USB2.0+6*Signal	/
Sewer-checking Robot	LPT000-3816-2402	38*16A+24*2A	0~20 rpm
Research Robot	LPKS008-0204-0402	2*4A+4*2A	0~50 rpm
Pick-and-place Machine	LPT025-0365-0416	3*65A+4*16A	0~20 rpm
Robot Arm Joints	LPMS-06B	6*1A	0~300 rpm
Mechanical Arm for 3D Scanner	LPM-18C	18*Signal	/
