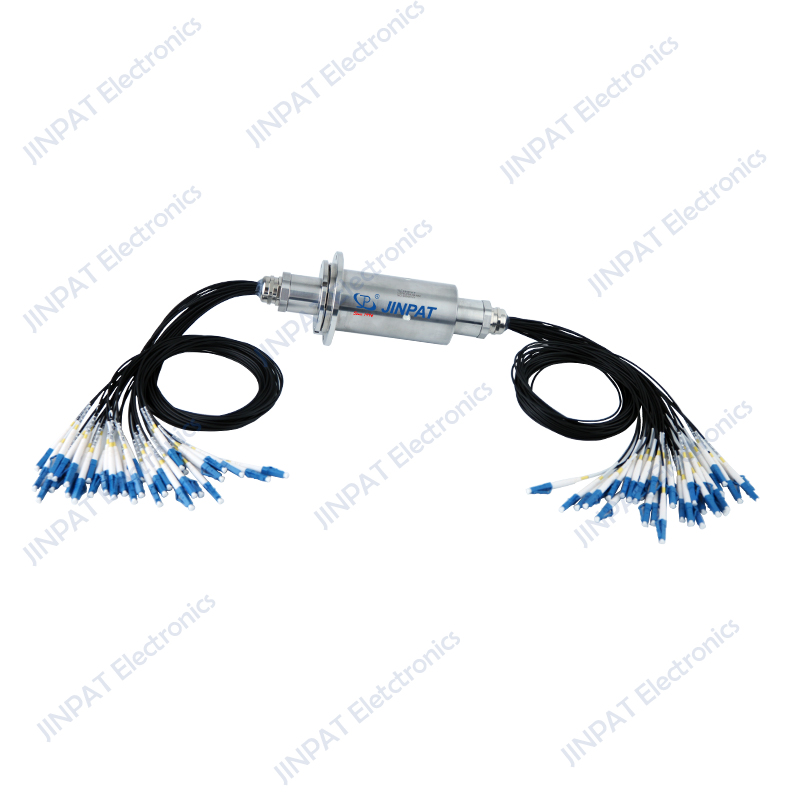

LPFO-37A fiber optic rotary joints
The LPFO-37A Fiber Optic slip ring is a high-performance device that has been carefully built for specific needs.
In the application of large cable drum, it can ensure the stable and continuous transmission of power and signals,
make the operation of the drum more efficient and reliable, and greatly improve the efficiency and quality of related work.
For Marine crane equipment, LPFO-37A fiber optic slip ring with its excellent performance,
can adapt to the harsh environment and complex conditions of Marine engineering.
Whether in the face of high humidity, highly corrosive Marine climate, or the mechanical stress caused by frequent lifting operations,
it can play a stable role to ensure the accurate operation and safe operation of offshore crane equipment.
The LPFO-37A fiber optic slip ring is ideal for applications such as large cable reels and offshore cranes,
providing strong support for the outstanding performance of related equipment.
Apply
Large cable reel
Marine crane
| Specifications | |||
| Fiber types | SM/MM | Maximum speed | 300rpm |
| Channel number | 19-32 | Package style | Pigtails on both ends |
| wavelength range | SM:1310/1550nm MM:850/1300nm | Weight,approx | 4500g (No tail cable and connection in cluded) |
| Insertion loss | ≤5dB | Jacket types | 2.0mm armor |
| Insertion loss ripple | ≤2dB | Connector types | Fc/SC/ST/LC(PC or APC) |
| Return loss | SM:≥40dB MM:≥25dB | Estimated life cycle | ＞50 million revolutions |
| Crosstalk | ≥50dB | vibration | MIL-STD-167-1A |
| Max Optical power | 23dB | Mechanical shock | MIL-STD-167-810G |
| Working temperature | -20~+65°C（Industrial grade） -45~+75°C（Military grade） | IP rating | IP54(Up to IP67) |
| Storage temperature | -55~+85°C | ||
