JINPAT Integrated Slip Rings for Offshore Engineering Equipment

Fiber optic rotary joints, also known as optical slip rings, are very special slip rings that transmit optical signals instead of power or electrical signals. As a slip ring expert, JINPAT Electronics comes up with many optical slip ring models that receive good reputation among the clients. By far, JINPAT Electronics is skilled in producing single mode fiber optic rotary joints within 5 channels and multi-mode optical slip ring within 10 channels. Fiber optic rotary joints have entered many electromechanical systems, but for those with more sophisticated structure and function, an integrated solution is needed. JINPAT stands by you to provide an integrated slip ring solution to allow hybrid transmission of power, electrical signals and optical signals.

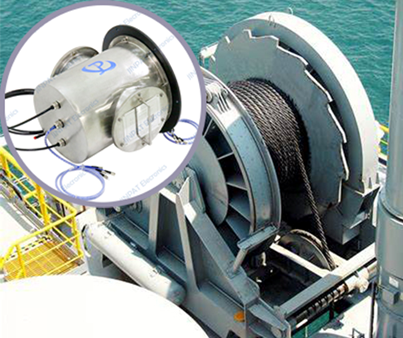

Integration as such are greatly demanded in the offshore engineering field. Let’s look at a large volume example. JINPAT LPA000-0250-FO04 is a large current slip ring with high power capacity. The rated current of a single channel is 50A with a working voltage of 4000V. This high power integrated slip ring takes up frame structure design. To allow high working voltage while ensuring its insulation, the space between rings should be wide enough and therefore this slip ring model has a relatively large volume. As for the optical module, there is a 4-channel single-mode fiber optic rotary joint to enable passage of optical signals. This slip ring model is basically installed in the marine winches.

Another very practical integrated slip ring for offshore engineering equipment is JINPAT LPA000-1484-FO04-EX. From its coding, you can see it is an explosion-proof slip ring. In the electrical module, there are 14 84A power channels, the working voltage is comparatively lower than that of the LPA000-0250-FO04, which is 3700V. This slip ring model is developed for Offshore platform ROVs. The power unit provides drive to the robot while the optical unit functions to transmit optic signals.

JINPAT Electronics is an experienced and innovative slip ring manufacturer. If you have any concern of our slip ring product or looking for a custom slip ring solution, you can send us an email. JINPAT will spare no effort in bring you a satisfactory solution.
