JINPAT Optoelectronic Integrated Slip Ring Solution

JINPAT is a high-tech enterprise dedicatedto the R&D, production, and sales of medium-to-high-end slip rings. To meetthe demand for 360° uninterrupted signal transmission in automationapplications, JINPAT has developed a diverse range of signal slip rings. Inaddition to specialized multi-channel USB 2.0/3.0 signal slip rings, thecompany offers high-definition video, CAN bus, control signal, and fiber opticslip rings derived from its current-carrying slip ring platform. Thesehigh-precision conductive slip rings represent advanced technological achievements,among which the optoelectronic integrated slip rings pose the greatestdevelopment challenge. JINPAT's optoelectronic integrated slip rings are theideal solution for high-speed, lossless signal transmission in precisioninstruments and sophisticated automated equipment.

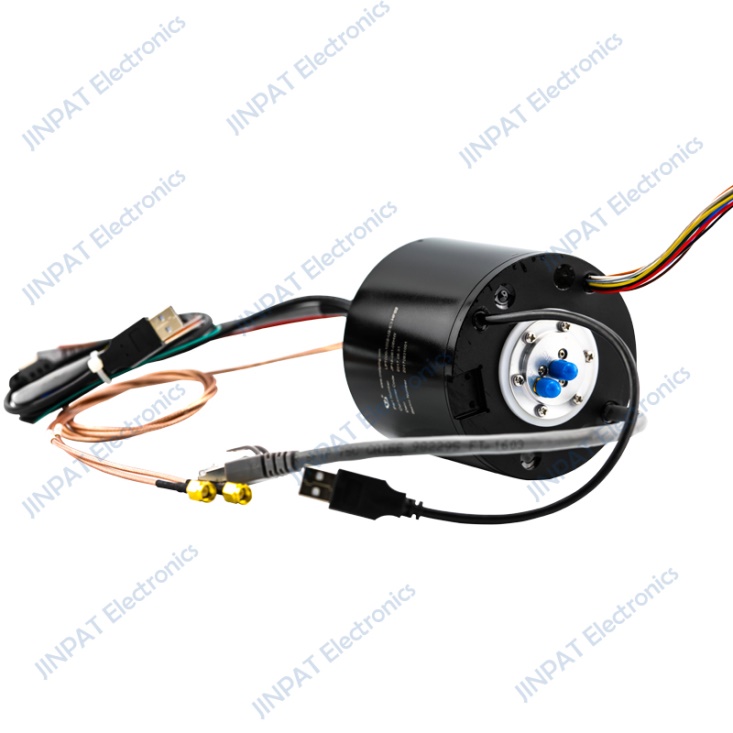

Take the newly developed modelLPT000-0910-3E3-FO04 as an example. This integrated slip ring combines powertransmission, multiple signal channels, and integrated fiber optic pathways. Itoperates at 480V and can transmit 3 sets of Gigabit Ethernet signals. It alsointegrates 4 fiber optic channels with a wavelength range of 1310nm to 1590nm,an insertion loss of less than 4dB, and a minimum bend radius of 30mm.Furthermore, it features excellent temperature resilience and a robust housing,operating reliably from -45°C to +80°C. The lightweight yet durable aluminumalloy shell ensures long-term stability for the host equipment.

Another model, LPT000-1210-39S-01E3-12FO,offers even lower insertion loss. It provides 12 channels of single-mode fiberoptics with a service life exceeding 10 million rotations. It maintainsreliable operation within a temperature range of -30°C to +80°C and is designedfor straightforward installation.

Among JINPAT's optoelectronic integratedslip rings, the LPC-1F Series stands out for its wide application and hasevolved into an independent product family. This series boasts a compact designwith a diameter of only 24.8mm, significantly saving space in end-useplatforms. While featuring one fiber optic channel, these slip rings alsointegrate 12, 24, 30, or 36 power circuits. Compared to simple fiber optic sliprings, the LPC-1F series not only solves signal transmission challenges butalso provides valuable power transmission capabilities for customers.
