JINPAT Slip Rings Empower Integrated Power Transmission for Sail Systems

In the fields of marine engineering and renewable energy, the efficient operation of sail systems relies fundamentally on stable and reliable energy and signal transmission technologies. Such systems must withstand complex maritime environmental challenges including high salt spray corrosion, drastic temperature variations, and dynamic mechanical loads, while also meeting multidimensional transmission requirements such as electric power drive, fiber optic communication, and hydraulic pneumatic control.

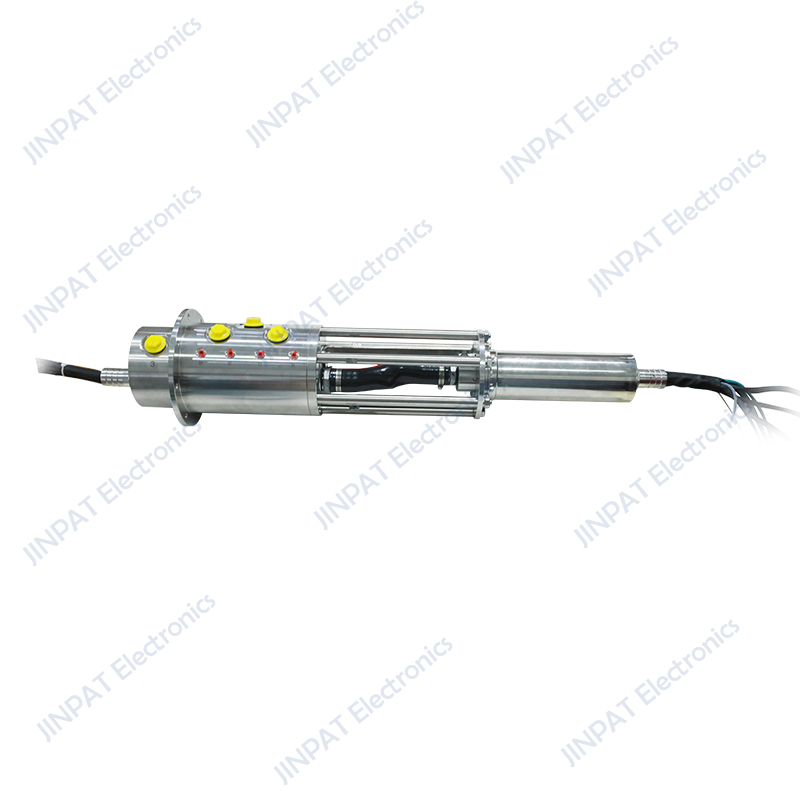

JINPAT LPPG030-03L-0816-17S-03E2 slip ring, with its highly integrated design and rugged durability, has become a core component for sail systems, providing critical support for the intelligent upgrading of modern vessels and marine equipment.

As a versatile integrated slip ring, the LPPG030-03L-0816-17S-03E2 combines electrical, optical fiber, and pneumatic hydraulic transmission functions, significantly simplifying the structural design of traditional sail systems. Internally, it features multiple electrical channels capable of carrying currents up to 16A, delivering stable power to sail drive motors, sensors, and control systems. The integrated high-performance fiber optic slip ring supports high-speed data transmission, enabling real-time feedback on critical parameters such as sail tilt angle and wind speed to ensure precise dynamic adjustments. Additionally, the slip ring incorporates three independent pneumatic hydraulic channels to simultaneously deliver hydraulic fluid or compressed air, driving sail steering mechanisms or braking systems for coordinated multi-system control. This multi-medium integrated design not only reduces complex onboard wiring and interface counts but also minimizes failure risks caused by independent operation of multiple devices.

Designed to withstand harsh marine environments, the LPPG030-03L-0816-17S-03E2 slip ring features an all-stainless steel housing structure with exceptional environmental adaptability. The stainless steel material provides superior resistance to salt spray corrosion, while its IP67-rated sealing ensures effective protection against moisture and particulate ingress, even under prolonged exposure to humid, salty conditions. The compact and lightweight yet high-strength design withstands mechanical vibrations during sail rotation and eliminates installation space redundancy typical of traditional split slip rings. This dual assurance of durability and reliability enables stable operation during frequent vessel starts/stops and extreme weather, extending the maintenance cycle of the entire system.

JINPAT LPPG slip rings, with their integrated and highly reliable design philosophy, provide a robust technical foundation for the efficient operation of sail systems.Contact JINPAT today to customize your slip ring solutions.
