JINPAT Slip Rings for Marine Industry

In the marine industry, there are lots of facilities and machines demand use of electrical slip rings and rotary joints. Like marine construction machines: marine cranes, marine electric cable reels, ship borne radars and podded ship propeller systems, etc. For these various application, JINPAT Electronics provides custom slip ring solutions. To satisfy different demands and realize the specific functions of the marine applications, the slip rings can be quite different. Now let’s look at some detailed examples.

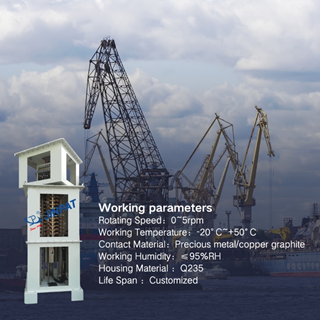

JINPAT Electronics has developed many large current slip rings for ship cranes. Some of our custom slip ring solutions are sole electrical product while other are integrated ones with capability to transmit power, signals, gas and fluid at the same time. LPA000-03560-01PE-0150-1608 is one of the typical JINPAT high power slip ring for marine cranes. It takes up case design, the structure endows the slip ring with excellent heat dissipation performance. Besides, there is a built-in temperature regulator to help provide a stable environment for the slip ring to operate stably. To cater with the extreme condition of the ocean, this custom slip ring is with excellent water proof and good salt spray corrosion resistance.

Another similar solution is JINPAT slip ring for port cranes. This type of slip rings is suitable for on-land construction machines. LPA000-03280-01PE-0440-1605 and LPA000-03560-01PE-0150-160 are two good examples. They have high protection grading and integrate a pneumatic channel. The power capacity is very high in order to integrate more power channels and signal channels.

LPA130-031000-01PE-50S is one of JINPAT’s proudly present slip ring models for podded ship propellers. JINPAT podded ship propeller slip ring features excellent resistance to oil mist, salt spray, and mould. It passed the damp heat test and vibration test carried upon the IEC60068-2-30 standard. Pneumatic hydraulic channel can endure pressure up to 1MPa.

For more slip ring solutions for marine industry, you can send us an email or you can browse through our custom slip ring catalogue. JINPAT Electronics, your slip ring expert.
