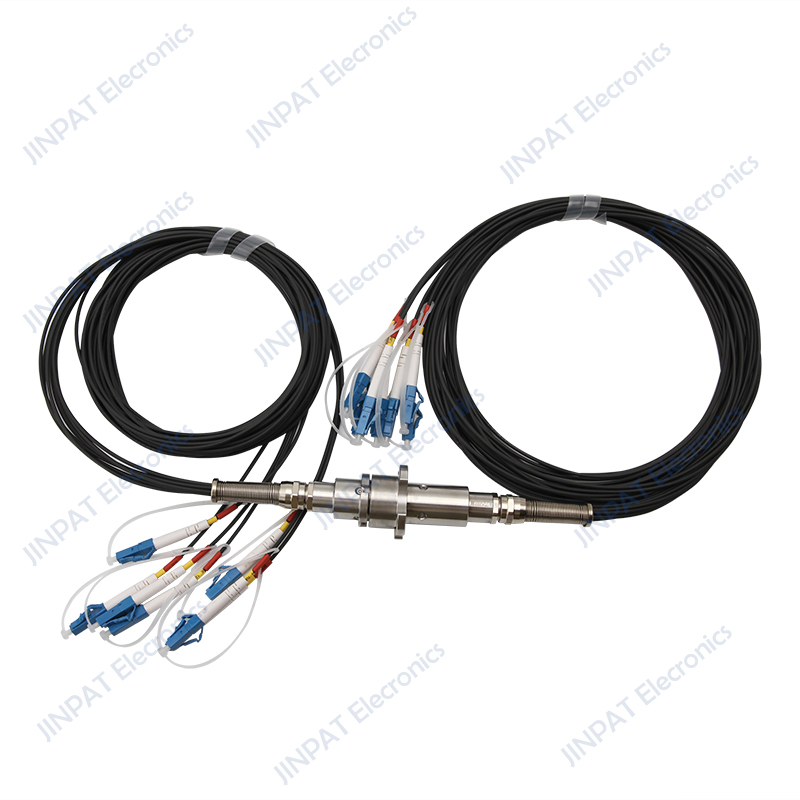

LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.
| Specifications | |||
| Fiber types | SM or MM | Jacket types | 2.0mm(Kevlar/TPU or armor) |
| Channel number | 5 | Connector types | FC/SC/ST/LC(PC or APC) |
| Wavelength range | SM:1310-1550nm MM:850/1300nm | Estimated life cycle | ＞100 million revolutions |
| Insertion loss | ＜4dB | Vibration | MIL-STD-167-1A |
| Insertion loss ripple | ＜2dB | Mechanical shock | MIL-STD-810G |
| Return loss | SM:≥45dBMM:≥30dB | IP rating | IP65 or IP67 |
| Crosstalk | ≥50dB | Max Optical power | 23dBm |
| Storage temperature | -55~+85℃ | Working temperature | -20~+65℃(Industrial grade) -50～+80℃ (Military grade) |
| Weight, approx | 200g（No tail cable andconnection included） | Maximum speed | 300rpm |
| Package style | Pigtails on both ends | ||
