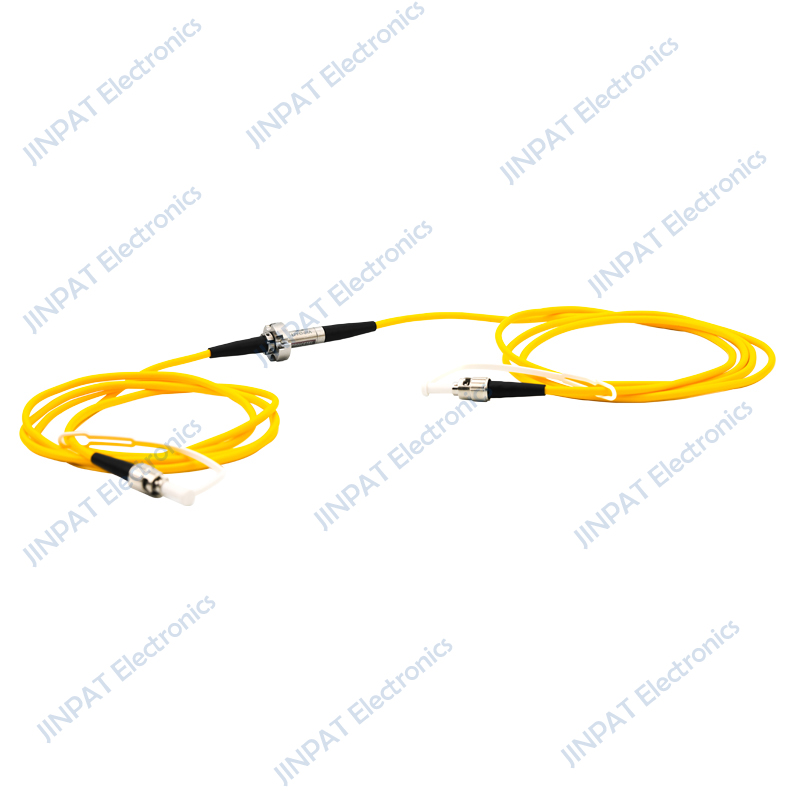

LPFO-01A fiber optic rotary joints

Number of Circuits 1
Lead Size Φ6.8/Φ15.2*28
Wavelength range 650-1650nm ( customized)
Insertion loss Single-Channel<2dB multi-channel<5dB
Insertion loss ripple Single-Channel<0.5dB multi-channel<2dB
Optional Fiber optic transmission type is optional,circuits of current and signal are optional.
Consult immediately
Parameters
Number of Circuits
1
Lead Size
Φ6.8/Φ15.2*28
Wavelength range
650-1650nm ( customized)
Insertion loss
Single-Channel<2dB multi-channel<5dB
Insertion loss ripple
Single-Channel<0.5dB multi-channel<2dB
Optional
Fiber optic transmission type is optional,circuits of current and signal are optional.
I know
Model ListInstallationReview(0)

Fiber Optic Rotary Joints
Fiber Optic Rotary Joints (FORJs) are to optical signals what electrical slip rings are to electrical signals, a means to pass signals across rotating interfaces, particularly when transmitting large amounts of data. FORJs maintain the intrinsic advantages of fiber end to end. JINPAT has been producing Fiber Optic Rotary Joints for over Twenty-five years.


LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.







Specifications


Fiber types


SM or MM


Connector types


F C/SC/ST/LC(PC or APC)


Channel number


1


Estimated life cycle


>200 million revolutions


Wavelength range

SM:1270-1650nm

MM:650-1300nm


Vibration


MIL-STD-167-1A


Insertion loss


<2dB


Mechanical shock


MIL-STD-810G


Insertion loss ripple


<0.5dB


IP rating


IP65 or IP68


Return loss


≥40dB


Maximum speed


2000rpm


Max Optical power


23dBm


Working temperature


-45~+80℃


Package style


Pigtails on both ends


Storage temperature


-55~+85℃


Weight, approx


10g(No tail cable andconnection included)


Jacket types


0.9/2/3mm(Kevlar/PVC or Armor)
