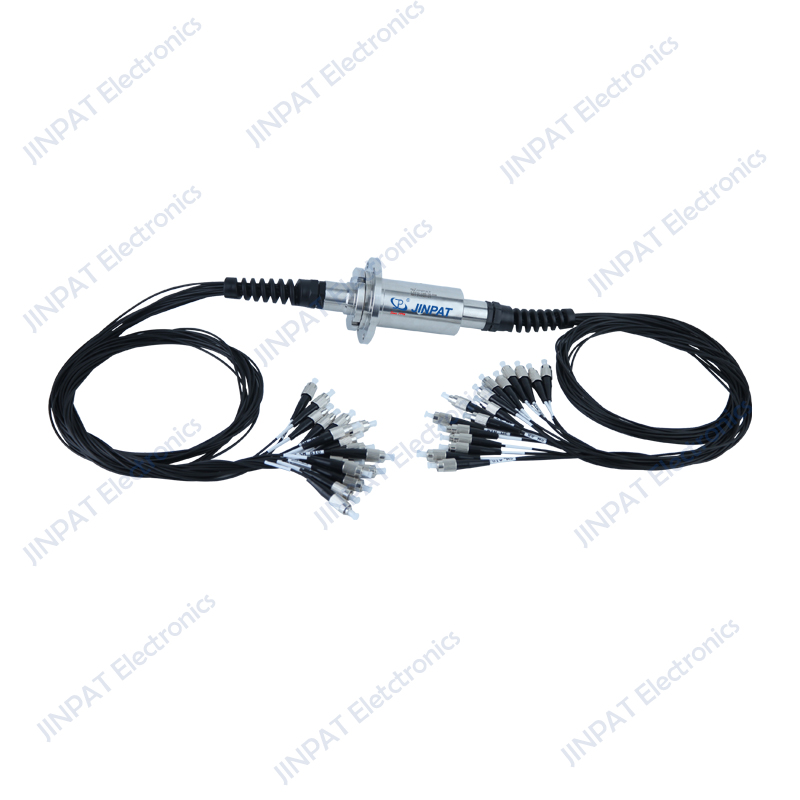

LPFO-19B fiber optic rotary joints
The LPFO-19B optical fiber slip ring is a professional equipment with excellent performance.
It is designed for a variety of special application scenarios, in the field of cable reels, to ensure the stable transmission of power and signals,
improve the efficiency and reliability of the reels.
In terms of ship light winch, its excellent performance makes the winch run more stable in the complex ship environment,
helping the smooth progress of ship operations.
For Marine crane and platform crane equipment, LPFO-19B fiber optic slip ring can adapt to harsh Marine working conditions to
ensure the accurate operation and safe operation of the crane.
In all kinds of Marine equipment, the optical fiber slip ring can effectively reduce signal interference and improve the
overall performance of the equipment by virtue of its excellent characteristics.
The LPFO-19B fiber optic slip ring is an indispensable component in many critical equipment,
providing a strong support for efficient operations in related fields.
Apply
Cable reel
Marine light winch
offshore crane
platform crane
Marine equipment
| Specifications | |||
| Fiber types | SM/MM | Maximum speed | 300rpm |
| Channel number | 8-18 | Package style | Pigtails on both ends |
| wavelength range | SM:1310/1550nm MM:850/1300nm | Weight,approx | 1000g (No tail cable and connection in cluded) |
| Insertion loss | ≤5dB | Jacket types | 2.0mm armor |
Insertion loss ripple | ≤2dB | Connector types | Fc/SC/ST/LC(PC or APC) |
| Return loss | SM:≥40dB MM:≥25dB | Estimated life cycle | ＞50 million revolutions |
| Crosstalk | ≥50dB | vibration | MIL-STD-167-1A |
| Max Optical power | 23dB | Mechanical shock | MIL-STD-167-810G |
| Working temperature | -20~+65°C（Industrial grade） -45~+75°C（Military grade） | IP rating | IP54(Up to IP67) |
| Storage temperature | -55~+85°C | ||
