JINPAT New Solutions for Construction Machinery Slip Rings

In the field of construction machinery, the layout and wiring methods of electrical systems directly impact equipment assembly efficiency, maintenance convenience, and long-term operational reliability. Traditional slip ring products often feature a design where the rotor and stator are wired from opposite sides. In equipment requiring centralized wiring or with limited space, this often leads to complicated wiring, cable redundancy, and even risks of interference and wear.

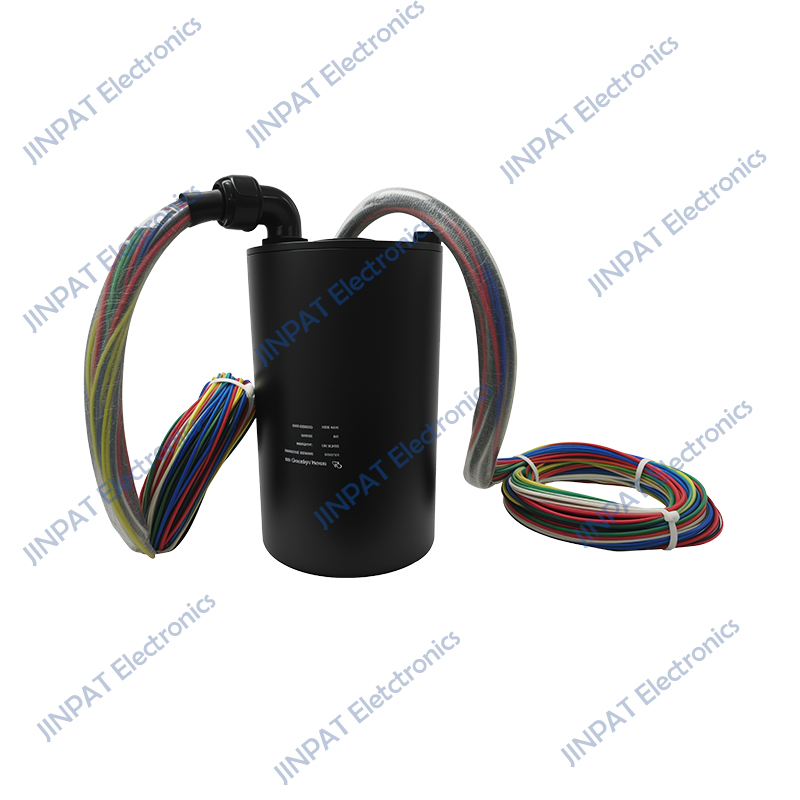

JINPAT innovatively launched the LPT038-0260-0130-0415-1808 slip ring, which features a unique design where the rotor and stator are wired from the same side. This provides an outstanding solution for optimizing the electrical architecture of equipment, particularly perfectly meeting the specific need for wiring terminals to be concentrated on the same side of the equipment. This design fundamentally transforms the equipment wiring logic, allowing all cables from the rotating part (connected to the rotor) and the fixed part (connected to the stator) to be consolidated and connected from a single direction. This not only greatly simplifies wiring operations and reduces cable crossing and tangling inside the equipment but also ensures compact and orderly overall wiring, significantly saving valuable installation space. At the same time, it reduces the risk of failures caused by excessive cable bending or friction.

The same-side wiring design of the JINPAT LPT038-0260-0130-0415-1808 slip ring brings tangible engineering value to construction machinery. For users, this design makes later-stage equipment maintenance, troubleshooting, and circuit inspection more intuitive and convenient. All interfaces are easily accessible without the need for complex operations from both sides of the equipment, significantly improving maintenance efficiency. With its innovative same-side wiring method, the JINPAT LPT038-0260-0130-0415-1808 slip ring provides a highly compatible, efficient, and reliable connection solution for the electrical design of construction machinery.
